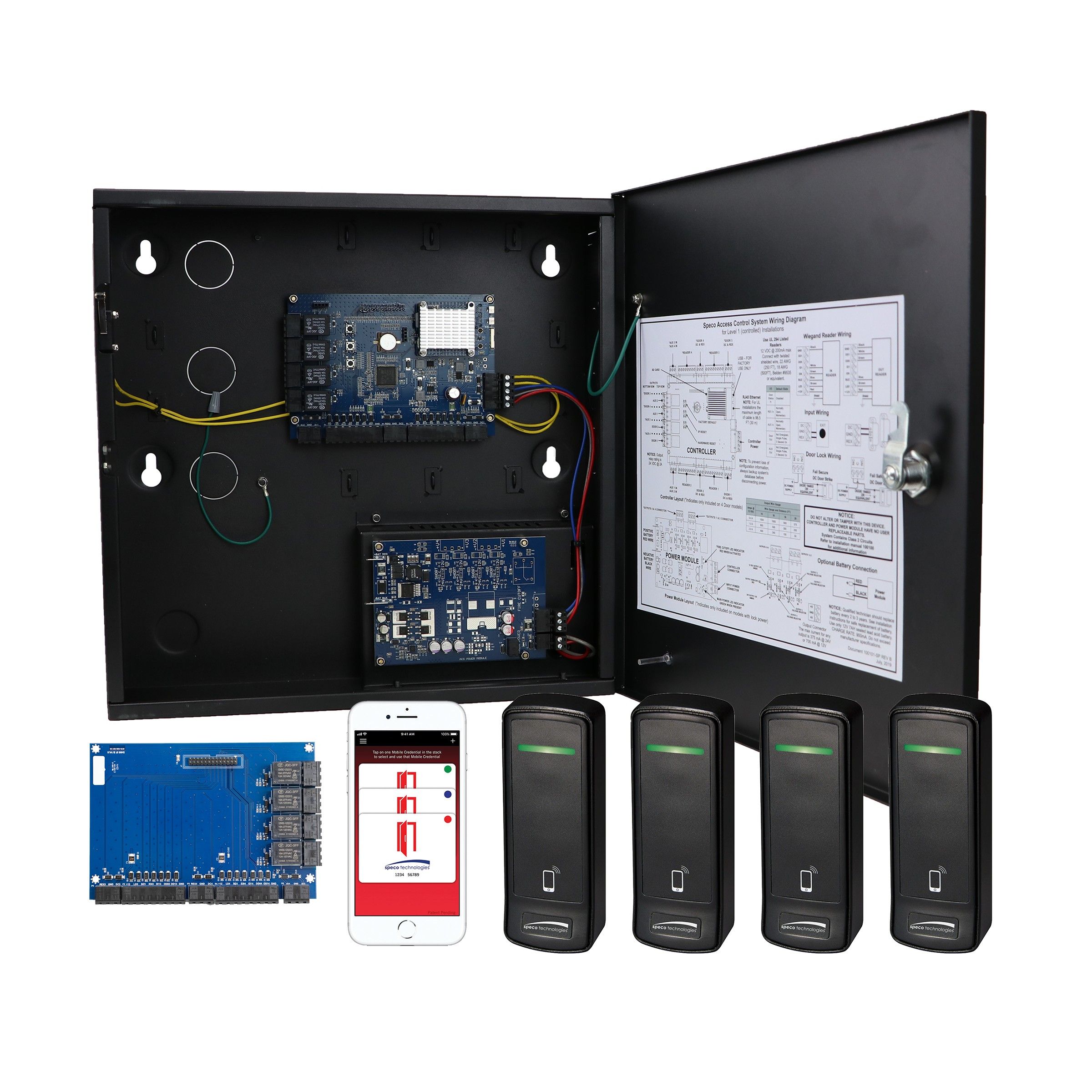

Speco ACKITM1 4 Door Access Control Kit with Bluetooth Mobile Reader & Credentials
SKU
ACKITM1
Model No
ACKITM1
$3,226.09
Product Highlights
- Embedded Linux operating system
- Expandable up to 4 doors (when used with A2M board)
- 2 Readers (In/Out)
- 2 Relays (Lock/Aux)
- 3 Inputs (REX, DPS, Aux) Global

Speak to an expert
The Speco ACKITM1 Access Control Kit offers a comprehensive solution for securing up to four doors, featuring Bluetooth mobile reader technology for convenient access management. This robust system includes everything you need for enhanced security and easy mobile access, ensuring compliance with both UL listings and NDAA regulations for peace of mind.
Speco ACKITM1 Access Control Kit Features

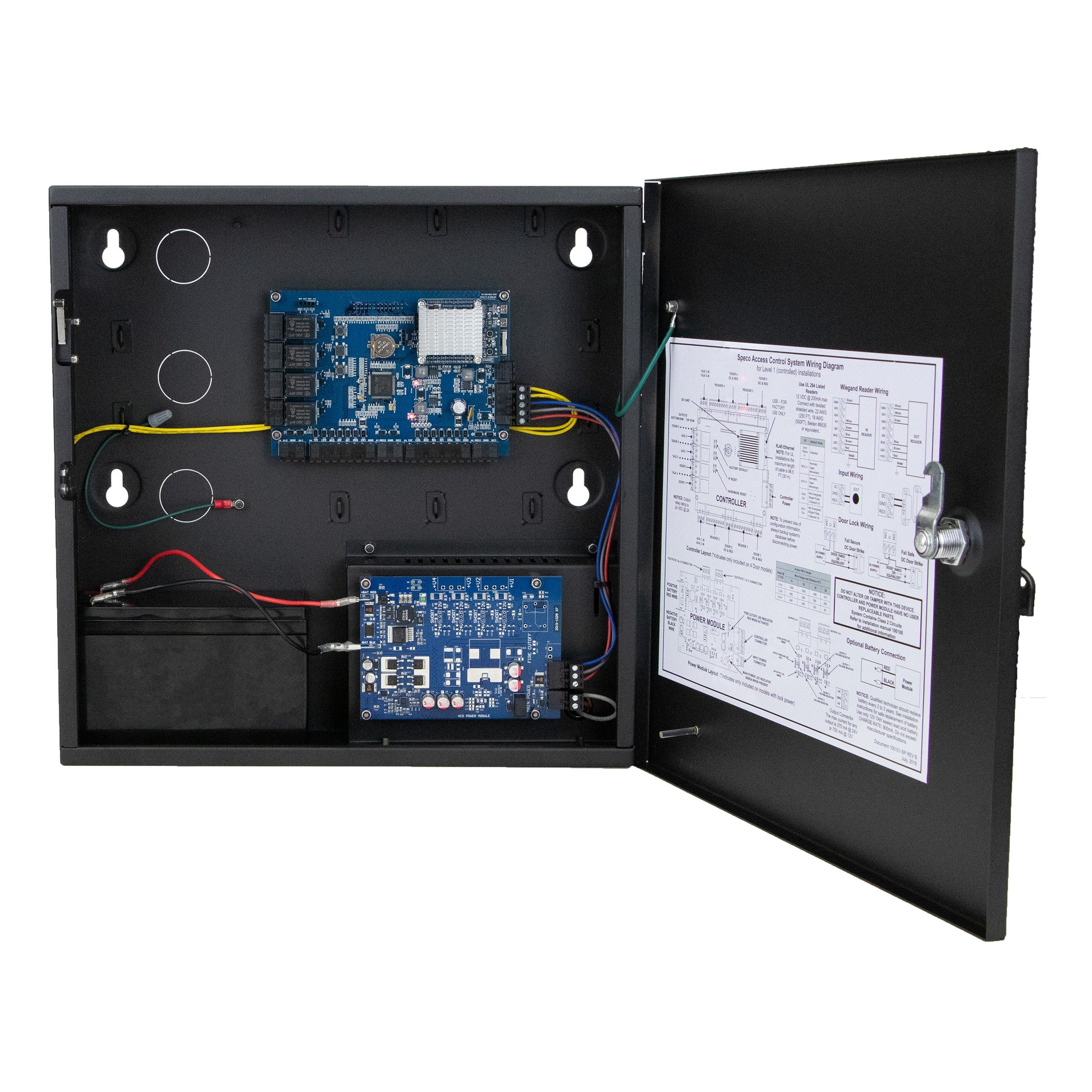

- A2E4P: Embedded Linux operating system ensures efficient performance and reliability.
- A2E4P: Expandable up to 4 doors with the A2M board, providing flexible security options.
- A2E4P: Includes 2 readers for In/Out access, allowing for managed entry and exit points.
- A2E4P: Offers 2 relays for lock and auxiliary functions, enabling versatile control of locking mechanisms.
- A2E4P: Features 3 global inputs, enhancing the adaptability of the system in varied situations.
- ACSR35L: Achieves up to 15 feet of read range, providing effective coverage for mobile access.
- ACSR35L: Contactless smartcard reader solution allows for quick and efficient credential access.
- ACSR35L: Digital RFID platform supports various access methods, ensuring versatility.

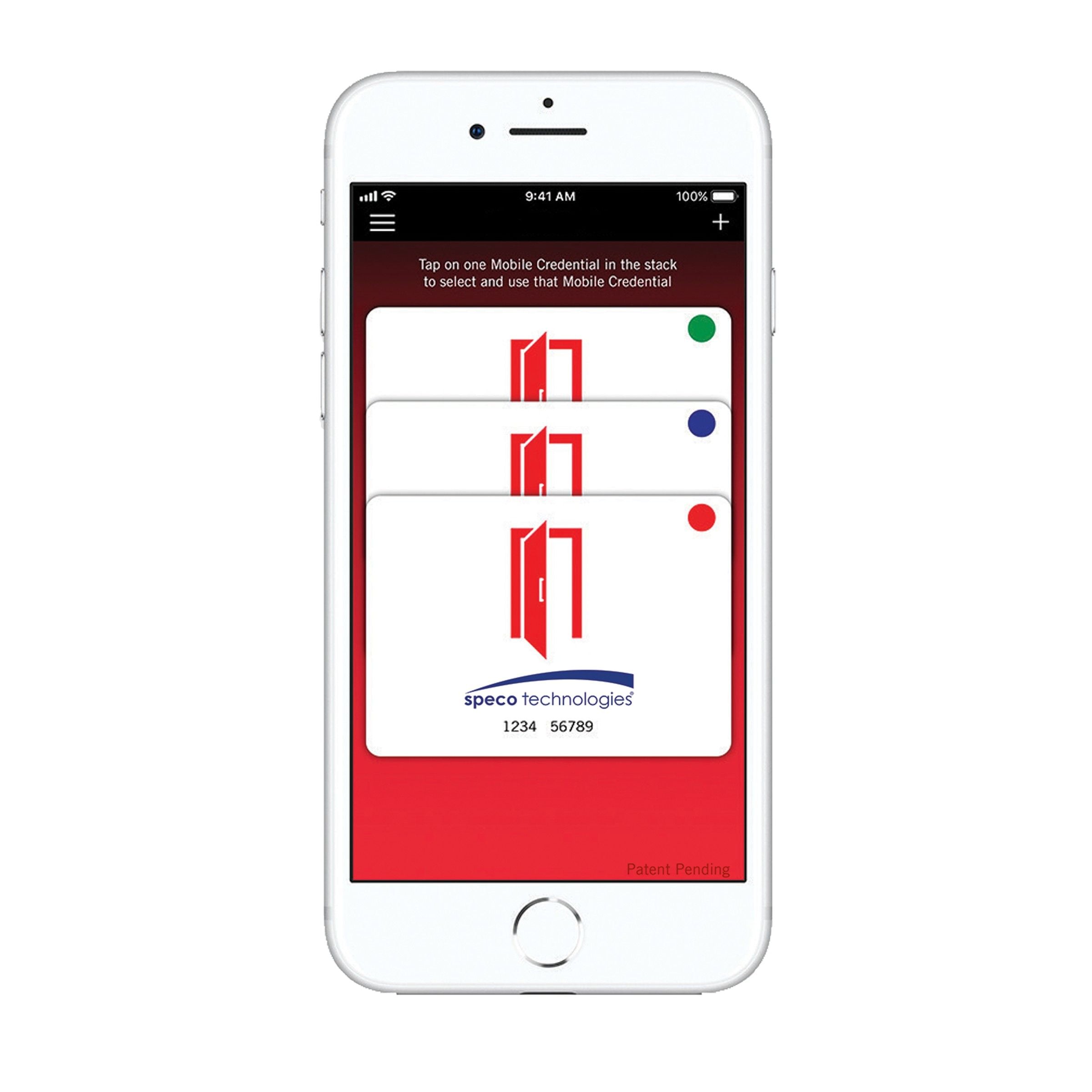

- ACMC2: Up to 15ft read range for efficient operational capabilities.
- ACMC2: High security encryption technology protects user credentials within smartphone parameters.

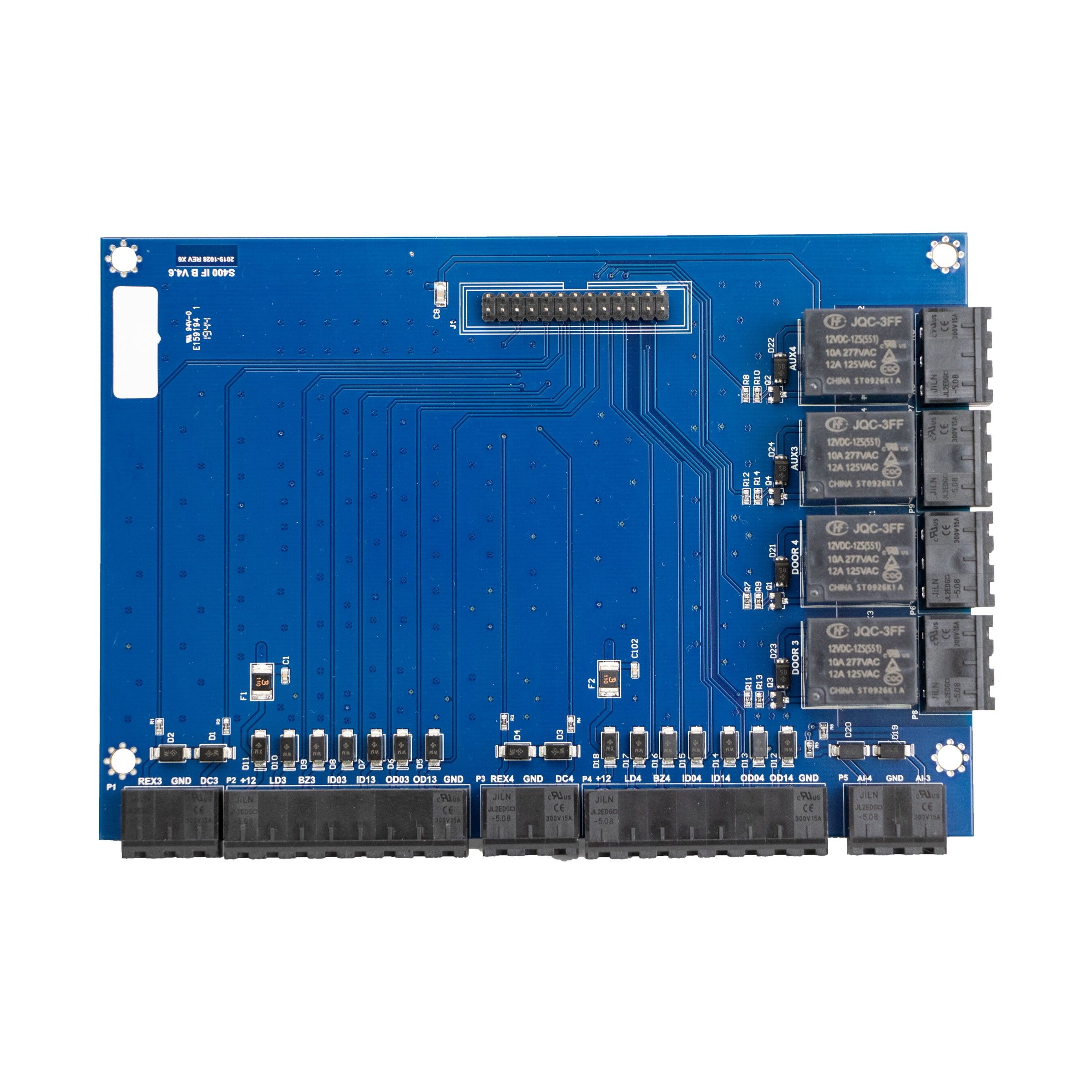

- A2M: Expands system capability, allowing for greater door control and functionality.
Detailed Specifications of Speco ACKITM1 Access Control Kit
| Product Components | (1) A2E4P, (1) A2M, (4) ACSR35L, (1) ACMC2, (1) AP4 (License) |
| Operating System | Embedded Linux |
| Max Doors Supported | Up to 4 with A2M |
| Readers Included | 2 (In/Out) |
| Lock Power Options | 12V/24V DC selectable |
| Read Range (ACSR35L & ACMC2) | Up to 15 feet |
| IP Rating | IP67, weather resistant |
| Compliance | UL listed - 294 Series 7, NDAA Compliant |
| Additional Features | Mobile access with BLE, tamper resistance, and high security encryption technology |
