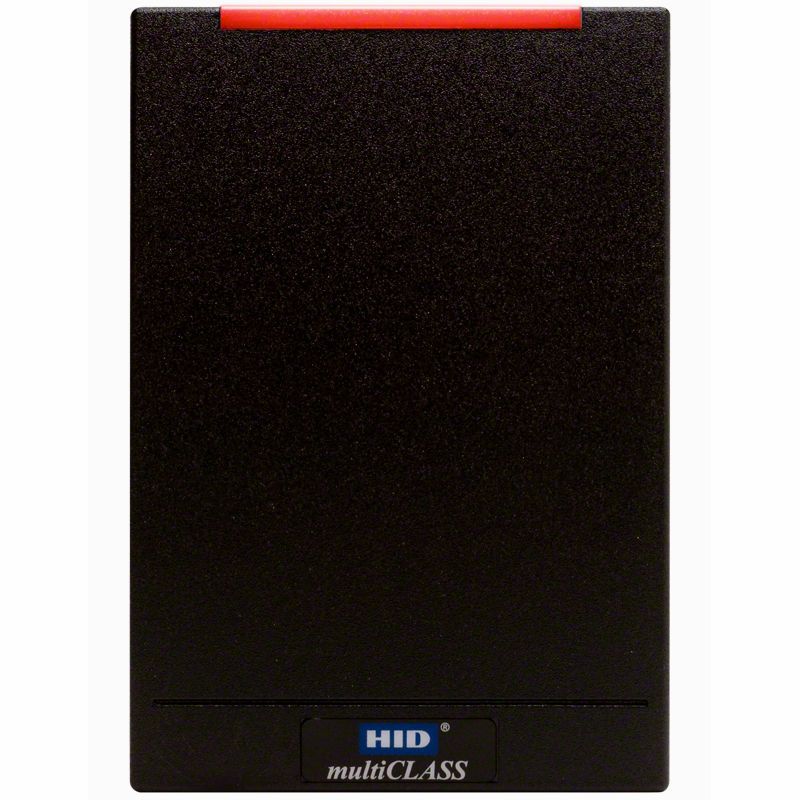

HID 920PMPNEKEA007 RP40 multiCLASS Reader
SKU
920PMPNEKEA007
Model No
920PMPNEKEA007
$307.30
Product Highlights
- 64-bit authentication keys are extremely secure. Readers and cards require matching keys to function. All RF data transmission between the card and reader is encrypted, using a secure algorithm. The key management system reduces the risk of compromised data or duplicated cards
- Custom keys provide the highest level of security, where cards and readers are uniquely matched to individual sites or customers, and are non-interchangeable. Combining Elite custom keys with our Corporate 1000 can offer companies a scalable solution that can be implemented in facilities worldwide
- Rugged, weatherized polycarbonate enclosure, designed to withstand harsh environments, provides reliable performance and resistance to vandalism. A tamper switch in reader housing facilitates the notification of a tamper alarm
Speak to an expert
The HID 920PMPNEKEA007 RP40 multiCLASS Reader is a versatile and secure contactless smart card reader that offers seamless integration of multiple card technologies, including HID Prox and iCLASS credentials. Designed for environments that require enhanced security and easy transition from existing systems, the RP40 combines robust performance with user-friendly features.
Features
HID 920PMPNEKEA007 Security Features
- Security: 64-bit authentication keys ensure secure operation with encrypted RF data transmission, enhancing protection against unauthorized access.
- Elite Custom Keys: Custom keys are site-specific and non-interchangeable, allowing for a high level of security aligned with the Corporate 1000 program for scalable solutions.
- Audiovisual Indication: An audio sounder and high-intensity light bar provide clear access status notifications, making it accessible for visually impaired users.
- Easily Interfaced: Compatible with existing Wiegand protocol access control panels, the reader supports multiple Wiegand formats for flexible integration.
- Indoor/Outdoor Design: The weatherized enclosure protects against harsh conditions, ensuring reliable operation and added safety with a built-in tamper switch.
HID 920PMPNEKEA007 Detailed Specifications
| Product Type | Multi-Technology Card Reader |
| Color | Black |
| Card Technologies Supported | HID Prox, iCLASS (iCLASS Seos, iCLASS SR), SWID, EM4102 |
| Connection Type | OSDP using RS-485 Half-Duplex |
| Pigtail Connection Length | 18 inches |
| Security Features | 64-bit keys, Mutual authentication, Data encryption |
| Output Formats | 260, 320, 340, 370, 400, 560-bit Wiegand formats |
| Enclosure Material | Weatherized polycarbonate |
| Dimensions | Contact Manufacturer for specifics |
SKU  | 920PMPNEKEA007 |
|---|---|
| Manufacturer | HID |
