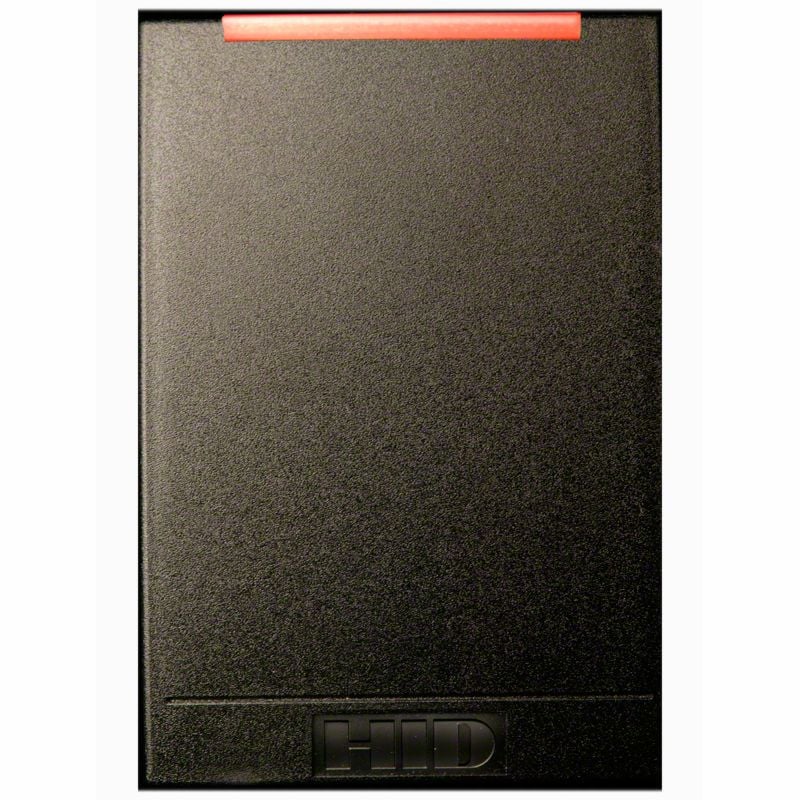

HID 920NTNTEK0001F R40 iCLASS SE Reader
SKU
920NTNTEK0001F
Model No
920NTNTEK0001F
$203.00
Product Highlights
- 64-bit authentication keys are extremely secure. Readers and cards require matching keys to function. All RF data transmission between the card and reader is encrypted using a secure algorithm. The key management system reduces the risk of compromised data or duplicated cards
- Custom keys provide the highest level of security, where cards and readers are uniquely matched to individual sites or customers, and are noninterchangeable. Combining Elite custom keys with our Corporate 1000 can offer companies a scalable solution that can be implemented in facilities worldwide
- Rugged, weatherized polycarbonate enclosure, designed to withstand harsh environments, provides reliable performance and resistance to vandalism
Speak to an expert
The HID iCLASS SE R40 Contactless Smart Card Reader is designed for secure access control with its advanced features, robust design, and compatibility with a variety of smart card technologies. Key benefits include high-level encryption for data security, customizable key options for individual sites, and reliable performance in diverse environments, making it a top choice for organizations prioritizing safety and convenience.
Features
HID 920NTNTEK0001F R40 iCLASS SE Reader + Security Features
- Security: 64-bit authentication keys provide high-level security by requiring matching keys for operation, and encrypted RF data transmission protects against unauthorized access.
- Elite Custom Keys: Ensures unique matching of cards and readers to individual sites, enhancing security and allowing for scalable implementation across multiple facilities.
- Audiovisual Indication: Audio sounder alerts users of access status through tone variations while a high-intensity light bar delivers clear visual signals, improving accessibility for all users.
- Indoor/Outdoor Design: The rugged polycarbonate enclosure ensures reliable performance in harsh environments, providing resistance to vandalism.
- Easily Interfaced: Wiegand output compatibility allows seamless integration with existing access control systems and configurable outputs for various card standards.
HID 920NTNTEK0001F R40 iCLASS SE Reader + Options
- Colors available: Black or Gray
- Key Management: Standard or Elite selectable
- Output Type: Programmable for MIFARE cards
- Termination Options: 18" Pigtail or Terminal Strip
- Accessory: Security Tool; 04-0001-03
- Transit Options: Enable FeliCa IDm and/or CEPAS CAN/CSN
HID 920NTNTEK0001F R40 iCLASS SE Reader + Detailed Specifications
| Frequency | 13.56 MHz |
| Communications | Wiegand Controller Communications |
| Mounting | Wall Switch Mount |
| Configuration Settings | 001F |
| Enclosure Material | Weatherized Polycarbonate |
| Output Formats | 26-bit, 32-bit (MSB/LSB), 34-bit, 40-bit, 56-bit Wiegand |
| Operating Temperature | -31°F to 131°F (-35°C to 55°C) |
| Dimensions | 4.6 x 4.2 x 1.2 in (117 x 107 x 30 mm) |
SKU  | 920NTNTEK0001F |
|---|---|
| Manufacturer | HID |
