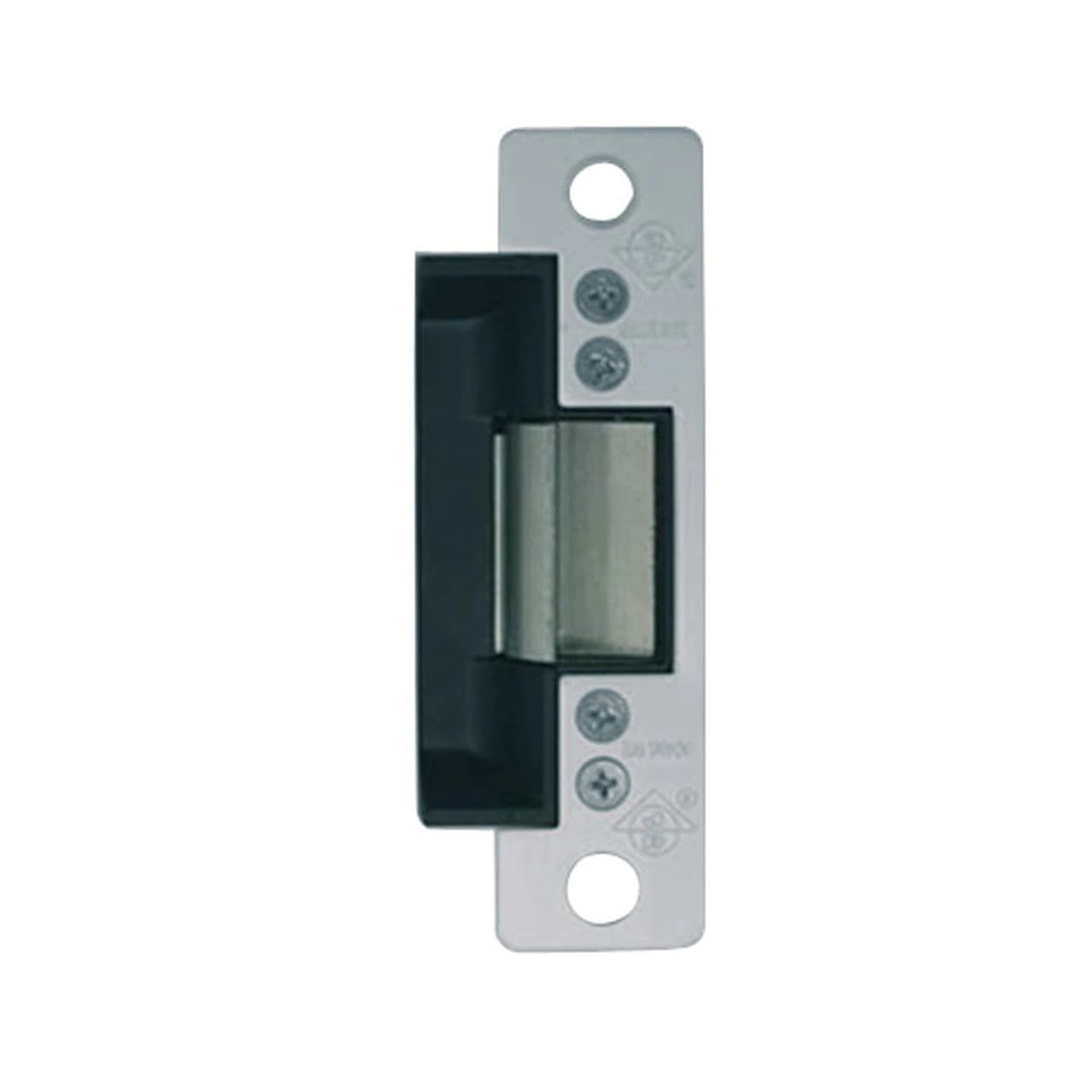

Adams Rite 7100-310-628-00 Electric Strike 12VDC Fail-Secure in Clear Anodized, 1-1/16"

The 7100-310-628-00 from Adams Rite is an Electric Strike 12VDC Fail-Secure in Clear Anodized, 1-1/16". The 7100 series Electric Strike with 4-7/8" faceplates are specifically designed for Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latchbolt projection. It provides remote electrical control of any door equipped with an Adams Rite 4500, 4700 or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2" to 5/8" latchbolt projection. Here, the electrical actuation unlocks strike jaw and thus releasing latchbolt so that the door can be opened without operating latch itself. The Adams Rite 7100 series' extremely compact mechanism very smoothly fits into aluminum jamb (or opposing door) sections as shallow as 1-5/8". It easily fits existing prep for discontinued Adams Rite 7000, 7500, 7800 series electric strikes.

Adams Rite 7100-310-628-00 Electric Strike Features

• Clear Anodized Finish: Enhances durability and aesthetics, making it suitable for various applications.
• Aluminum Construction: Lightweight and resilient, ensuring longevity and ease of installation.
• 12V DC Continuous or Intermittent Voltage Operation: Provides flexible installation options for different security needs.
• Current Draw/Amps for 12V Operation: DC Continuous - 0.33A, allowing energy-efficient performance.
• Stainless Steel Split-Jaw Included: Features a 5/8" x 1-7/16" x 1/2" deep strike opening for secure locking.
• Compact Size: Zinc-aluminum alloy case size of approximately 1" x 3-3/8" x 1-5/8" deep, perfect for tight spaces.
• Electrical Remote Control: Enables door opening without manually depressing the panic hardware cross bar, enhancing accessibility.
• UL 1034 Burglary-Resistant Listed Hardware: Ensures product reliability and security for peace of mind.
• Fail-Secure as Standard: Remains locked upon power loss, enhancing security.
• Included Flat Faceplate: A flat faceplate measuring 1-1/4" x 4-7/8" simplifies installation.
• Fail-Secure Feature: Requires power to unlock, providing enhanced security when power is lost.

Detailed Specifications for Adams Rite 7100-310-628-00
