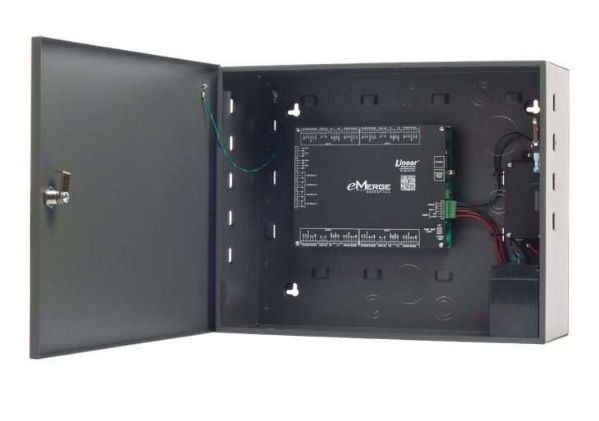

Linear 620-100153P eMerge Essential Plus 4-Door Access Control Platform with Power Distribution System

The 620-100153P from Linear is an eMerge essential plus 4-door access control platform with power distribution system. The eMerge Essential Plus™ embedded browser-based network appliance makes advanced security technology reliable and affordable for any entry-level access control application. With tens of thousands of access control systems deployed in the field, and backed by decades of experience, Linear continues to deliver unprecedented value and innovation. This full-featured, self-contained hardware/software access systems is perfect for commercial, industrial, banking, medical, retail, hospitality, and other businesses where users need to secure their facilities, manage access of personnel, create and analyze reports, and monitor the system remotely from any web browser.

The comprehensive wizard is fast and intuitive, saving significant set-up time. The eMerge Essential Plus can be seamlessly scaled up, via software keys, to other eMerge E3-Series systems providing increased door and reader capacity, enhanced features, and higher level capabilities. The eMerge E3-Series makes expansion easy. The eMerge Essential Plus sets new standards of excellence for reliability, ease-of-use, expandability, best-in-class value and lowest cost of ownership.

Features

• Shared architecture: Shared hardware and software architecture across all eMerge E3-Series means easy upgrades and expansion.
• Embedded OS: Reliable, IT-friendly embedded Linux operating system eliminates virus/spyware attacks and Operating System update dependency.
• Scalable access control: eMerge Essential starts at 1-door/2-reader capacity with out-of-the-box expansion capability to 4-doors/8-readers with license key-based scalability.
• Quick-start wizard: Intuitive quick-start wizard allows for ultra-fast setup, saving hours of time versus traditional systems.
• Browser management: Browser-based management enables system status and updates from any place, with any browser, on any operating system.
• Expandable: Easily scalable via software upgrade to higher-capacity E3-Series eMerge systems.
• Metal enclosure: Midsized metal enclosure with key lock for increased security.
• UL Certification: UL 294 Certified for reliability and safety.
• Database support: Includes ODBC-compliant MySQL database with API for advanced data management.

Linear 620-100153P Hardware Features

• Solid state components: 100% solid state components for extended service life.
• High-speed processor: High-speed processor handles multiple simultaneous users and more than 30 transactions per second.
• Integrated functionalities: Integrated tamper switch and inputs/outputs for additional functionality.
• PoE option: Optional Power over Ethernet (PoE) available, allows for backup power through a UPS.
• Included features: eMerge Essential Plus includes a 5-amp 12 VDC supervised power supply, capable of housing an additional expansion module, and battery backup-ready enclosure.

Linear 620-100153P Software Features

• Unified software: One common software for all platforms, based on Linear’s industry leading access control software.
• Status dashboard: Dashboard displays full system status at a glance including event and activity log and customizable door diagrams/floor plans with factory default templates.
• Card decoder: Integrated card decoder provides seamless operations.
• Data import: Supports CSV flat file database import for easy data management.
• Event filtering: Dynamic event filtering simplifies monitoring.
• Audit-trail: Built-in audit-trail enhances security and accountability.
• Daily backups: Automatic daily data backup to Micro SD or FTP-based storage ensures data security.
• Mobile access: Usable from iPhone, iPad, Android or other mobile devices for convenience.
• Notifications: E-mail and text message notifications keep users informed.
• Predefined reports: Simple, easy-to-use predefined reports streamline management.
• Documentation: Built-in documentation library assists users with queries.
