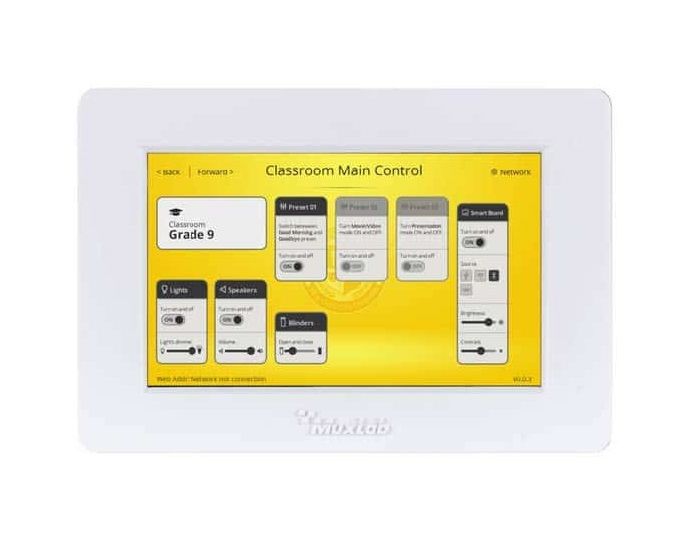

MuxLab 500817-WH Touch Control Panel 5 Inch White, PoE
SKU
500817-WH
Model No
500817-WH
$776.31
Product Highlights
- 5" LCD panel resolution 480×800
- Control end devices via TCP/IP, UDP, Telnet, RS232, IR & Relay
- Programmable via Web Interface Powered using power supply or PoE (Power over Ethernet)
- Supports the addition of various programmable buttons that can be placed on different pages
- Supports one (1) Ethernet port, two (2) RS232 ports, one (1) RS-485 port, one (1) Infrared port, two (2) voltage sense ports, and two (2) Relay ports
Speak to an expert
The MuxLab Touch Control Panel 5 inch White, PoE is a versatile wall touch control panel designed for seamless integration with MuxLab devices and third-party products. It features a high-resolution 5” color touch screen, providing two-way feedback and customizable interfaces that enhance user interaction. This control panel simplifies the management of AV systems by offering multiple ports for enhanced connectivity and control capabilities.
Detailed MuxLab Touch Control Panel Features
- 5" LCD resolution: Enjoy vibrant visuals with a resolution of 480×800 for clear and detail-rich operation.
- Multiple control protocols: Effectively control end devices through TCP/IP, UDP, Telnet, RS-232, IR, and Relay, ensuring compatibility with various systems.
- Web interface programming: Easily configure and manage the touch panel remotely, allowing for quick adjustments and custom setups.
- Customizable buttons: Add various programmable buttons on different pages to tailor the interface according to specific needs and preferences.
- Diverse connectivity options: Equipped with one (1) Ethernet port, two (2) RS-232 ports, one (1) RS-485 port, one (1) Infrared port, two (2) voltage sense ports, and two (2) Relay ports for comprehensive device control.
MuxLab Touch Control Panel Specifications
| Product Name | MuxLab Touch Control Panel 5 inch White, PoE |
| Display | 5” Color LCD (480×800) |
| Power Supply | PoE (Power over Ethernet) or external power supply |
| Control Protocols | TCP/IP, UDP, Telnet, RS-232, IR, Relay |
| Ports | 1 Ethernet port, 2 RS-232 ports, 1 RS-485 port, 1 Infrared port, 2 voltage sense ports, 2 Relay ports |
SKU  | 500817-WH |
|---|---|
| Manufacturer | MuxLab |
There are no related videos.
Write Your Own Review
Manuals & Specifications
500817-WH-Specsheet 500817-WH-User-Manual
