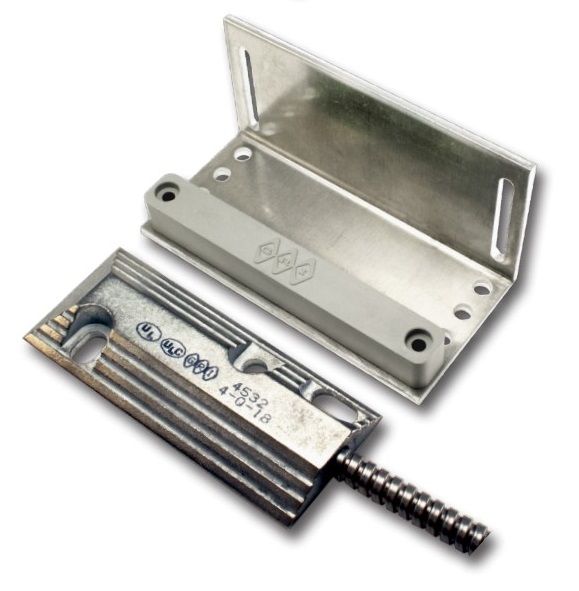

GRI 4532LB Switch Set, Overhead Door 2 1/2"

The GRI 4532LB Switch Set offers unmatched durability and installation versatility for overhead doors with its miniature low-profile design and robust features. Its cast aluminum construction ensures longevity in harsh environments, while the universal magnet provides flexibility for diverse mounting situations. With two feet of armored cable and optional accessories, this switch set is the ideal solution for reliable door monitoring.

GRI 4532LB Switch Set Features

• Durable Construction: Made from cast aluminum, it withstands harsh conditions, ensuring long-term reliability.
• Wide Working Gap: Operates at a gap of up to 3”, allowing for flexible installation.
• Universal Magnet: Can be mounted at various angles to accommodate challenging installations.
• Armored Cable: Comes with a 24” heavy-duty cable for protection against environmental damage.
• Optional Accessories: Includes an optional “L” bracket to enhance installation versatility.
• Hermetically Sealed: Provides reliable operation in extreme conditions without risk of moisture damage.
• Plated Contacts: Resist sticking or freezing, ensuring optimal performance over time.
• Built-in E.O.L. Features: Optional resistors and diodes for advanced applications, upon request.
• Separate Packaging: Switches and magnets can be packaged separately for your convenience.
• Installation Ready: Includes mounting hardware and requires only a 1/4” masonry bit for installation.

GRI 4532LB Detailed Specifications
