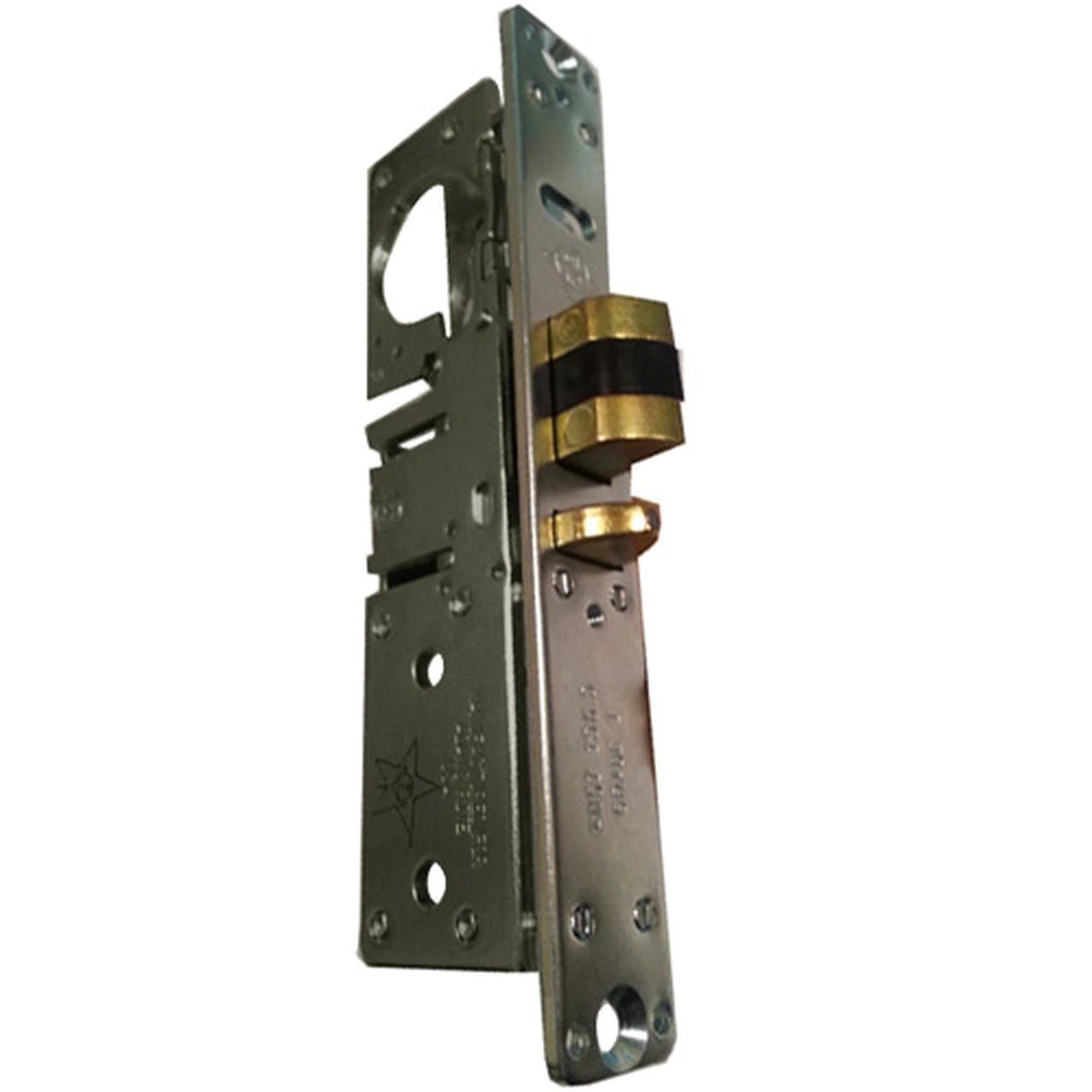

Adams Rite 4530-36-101-313 Standard Duty Deadlatch with Flat Faceplate in Dark Bronze Anodized

The 4530-36-101-313 from Adams Rite is a standard duty deadlatch with flat faceplate in dark bronze anodized. The 4530 Series Standard Duty Deadlatch offers maximum flexibility of traffic control during and after business hours. A reverse turn of the key (while bolt is held full retracted) retains the bolt and thus allowing the door to be free swinging with two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times. The 4530 series deadlatches are perfectly designed to fit without alteration, the stile cutout for older MS1850 Deadlocks and 4250 Deadlatches of same backset. However, they do not provide the same maximum security level as the MS Deadlock and should not be considered an equivalent replacement.

Features

• Finish: Dark Bronze Anodized faceplate adds durability and aesthetic appeal.
• Material: Aluminum construction ensures lightweight yet sturdy performance.
• Reversible Handing: RH or LHR operation is easily reversible without special tools, providing flexibility.
• Cylinder Backset: 1-1/8" dimension accommodates standard installations.
• Steel Case: Corrosion-resistant plating on case measuring 1" x 5-13/16" adds longevity (depth varies by backset).
• Security Grade: Grade 1 Standard rating delivers reliable locking performance.
• Cylinder Compatibility: Compatible with any standard mortise cylinder featuring MS dimensioned cam for convenience.
• Faceplate Size: Dimensions of 1-1/4" x 7-13/32" for a clean installation fit.
• Latchbolt: Metal construction with hardened steel internal pins ensures durability and a 1/2" x 1" x 1/2" throw for reliability.
• Strike Size: Mortised (4901) 4-5/8" strike size provides flexibility in setup.
• Auxiliary Bolt: All metal design prevents loiding or case-knife entry, enhancing security.
• Strike Shape: Flat design with standard jamb lip length for compatibility with most jambs.
• Standard Strike: Furnished with 4902-01 for flat jamb applications where doors close flush or nearly flush.

Adams Rite 4530-36-101-313 Detailed Specifications
