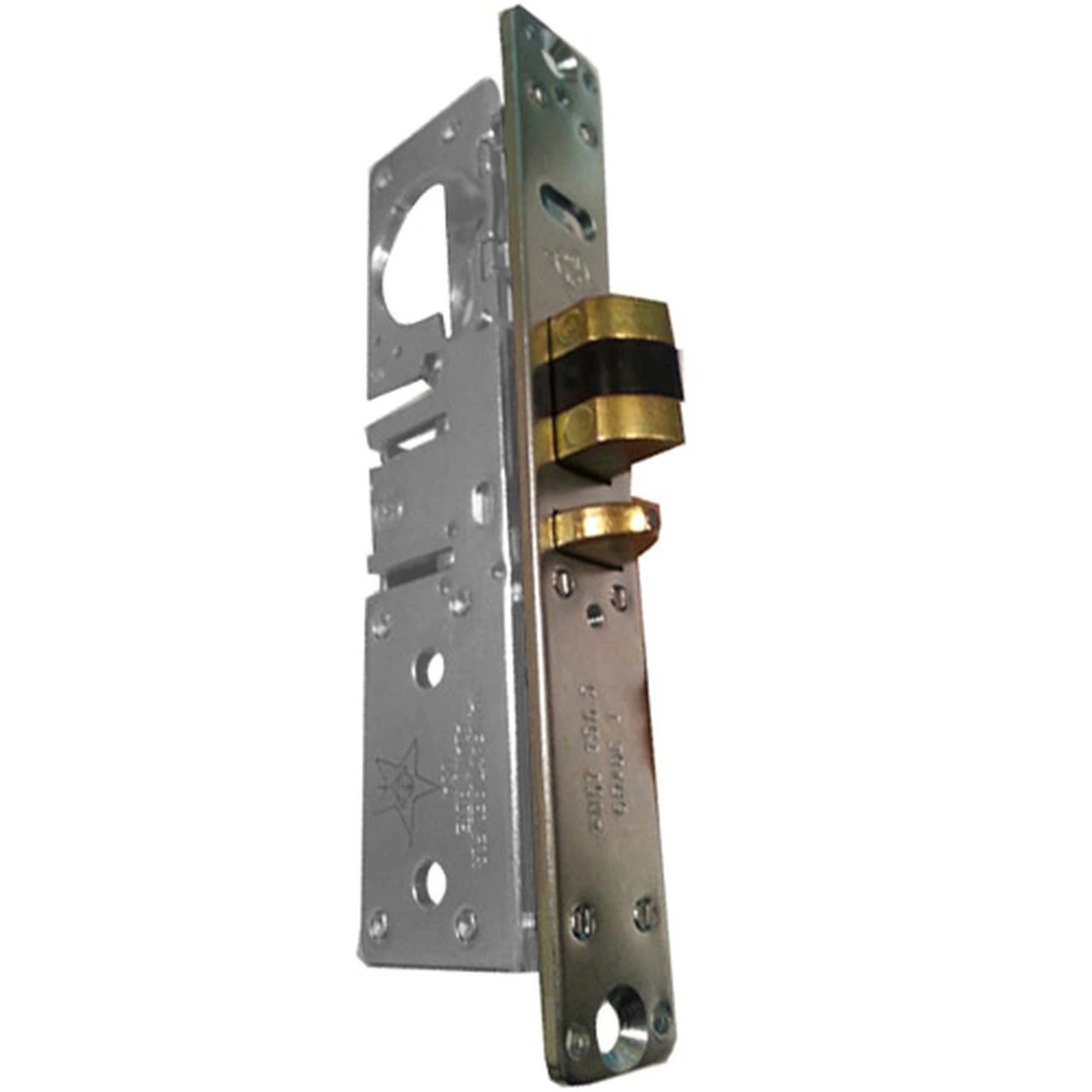

Adams Rite 4530-35-201-628 Standard Duty Deadlatch with Flat Faceplate in Clear Anodized

The 4530-35-201-628 from Adams Rite is a standard duty deadlatch with flat faceplate in clear anodized. The 4530 Series Standard Duty Deadlatch offers maximum flexibility of traffic control during and after business hours. A reverse turn of the key (while bolt is held full retracted) retains the bolt and thus allowing the door to be free swinging with two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times. The 4530 series deadlatches are perfectly designed to fit without alteration, the stile cutout for older MS1850 Deadlocks and 4250 Deadlatches of same backset. However, they do not provide the same maximum security level as the MS Deadlock and should not be considered an equivalent replacement.

Features

• Clear Anodized Finish: Enhances durability and aesthetic appeal, ensuring long-lasting performance in various environments.
• Aluminum Construction: Lightweight yet strong, facilitating easy installation and resilience against wear.
• Reversible Handing: LH or RHR operation is easily reversible without special tools, offering flexibility in installation.
• Cylinder Backset: Standard 1-1/8" backset allows compatibility with various door configurations.
• Corrosion-Resistant Steel Case: Measures 1" x 5-13/16" and maintains structural integrity over time, ensuring reliability in high-traffic areas.
• Grade 1 Standard: Ensures the highest level of residential security, suitable for commercial applications.
• Compatible with Standard Mortise Cylinder: Uses any standard mortise cylinder with MS dimensioned cam for convenient replacement.
• Faceplate Dimensions: Measuring 1-1/4" x 7-13/32", designed for robust fit and function.
• Hardened Metal Latchbolt: Internal pins increase resistance against forced entry with a 1/2" x 1" x 1/2" throw for enhanced security.
• Mortised Strike Size: 2-5/8" strike ensures proper alignment and functionality in door installation.
• All Metal Auxiliary Bolt: Provides additional defense against "loiding" or case-knife entry, reinforcing security.
• Flat Strike Shape: Designed with a standard jamb lip length to accommodate various door types.
• Standard Strike Furnished: The 4902-01 strike is tailored for flat jamb applications, ensuring proper door closure.

Adams Rite 4530-35-201-628 Detailed Specifications
