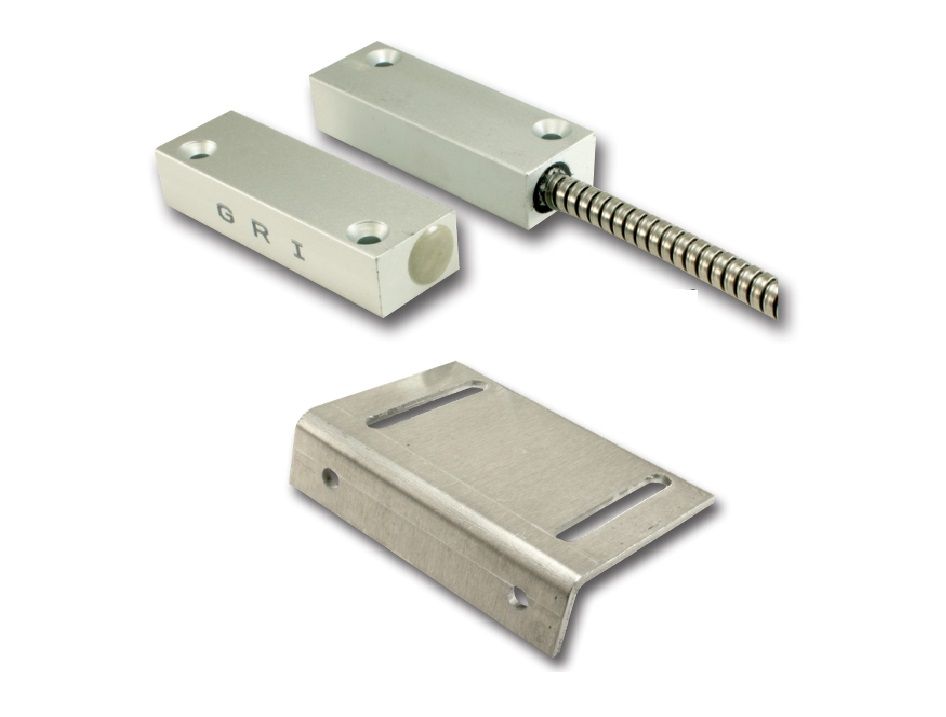

GRI 4400 Aluminum Industrial Wide Gap Switch Set 2.5 Gap Closed Loop

GRI’s 4400 switch series is a heavy duty surface mounted industrial grade contact. A weather resistant rugged aluminum housing and a variety of optional mounting brackets make it ideal for securing chain link gates, overhead garage doors, safes or walk-in freezer doors.

A standard 3 foot length of stainless steel cable is offered as is a vinyl jacketed CL-2 type cable. Custom cable lengths of either type are available by special request. A case spacer, PN 5226 can also be ordered as a separate mounting accessory. Switch sets include all other mounting hardware. A mounting kit, PN#8297 is also available for garage door tract mounting. The kit includes a 4402-A switch set, brackets and mounting hardware.

GRI 4400 Industrial Switch Features

• Bracket Included: S-12 bracket provided for easy installation.
• Versatile Security: Ideal for securing chain link gates, overhead garage doors, safes, and walk-in freezer doors to enhance safety.
• Weather Resistant Construction: Rugged aluminum housing designed to withstand harsh environments, operating within a range of -40°F to 257°F.
• Cable Options: 4400 features a 36” 2 conductor vinyl jacketed cable for reliable performance; 4400-A comes with a 36” armored cable for added protection.
• Custom Solutions: Built-in E.O.L. resistors and diodes available upon request for tailored security solutions.
• Supervisory Loops: Options available upon request to monitor equipment status effectively.
• Accessory Availability: Switches and magnets can be purchased separately for versatile configurations.
• Additional Mounting Options: Case spacers available (PN 5226) for adaptable installation.

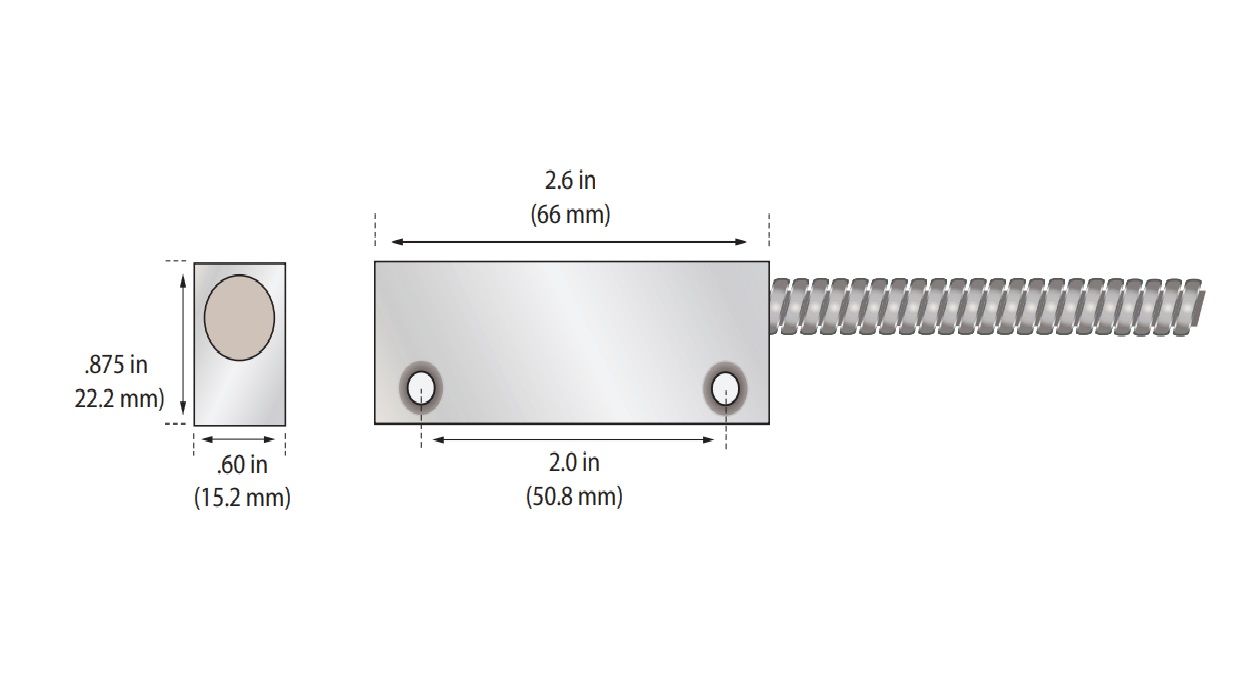

Detailed Specifications for GRI 4400 Switch Set
