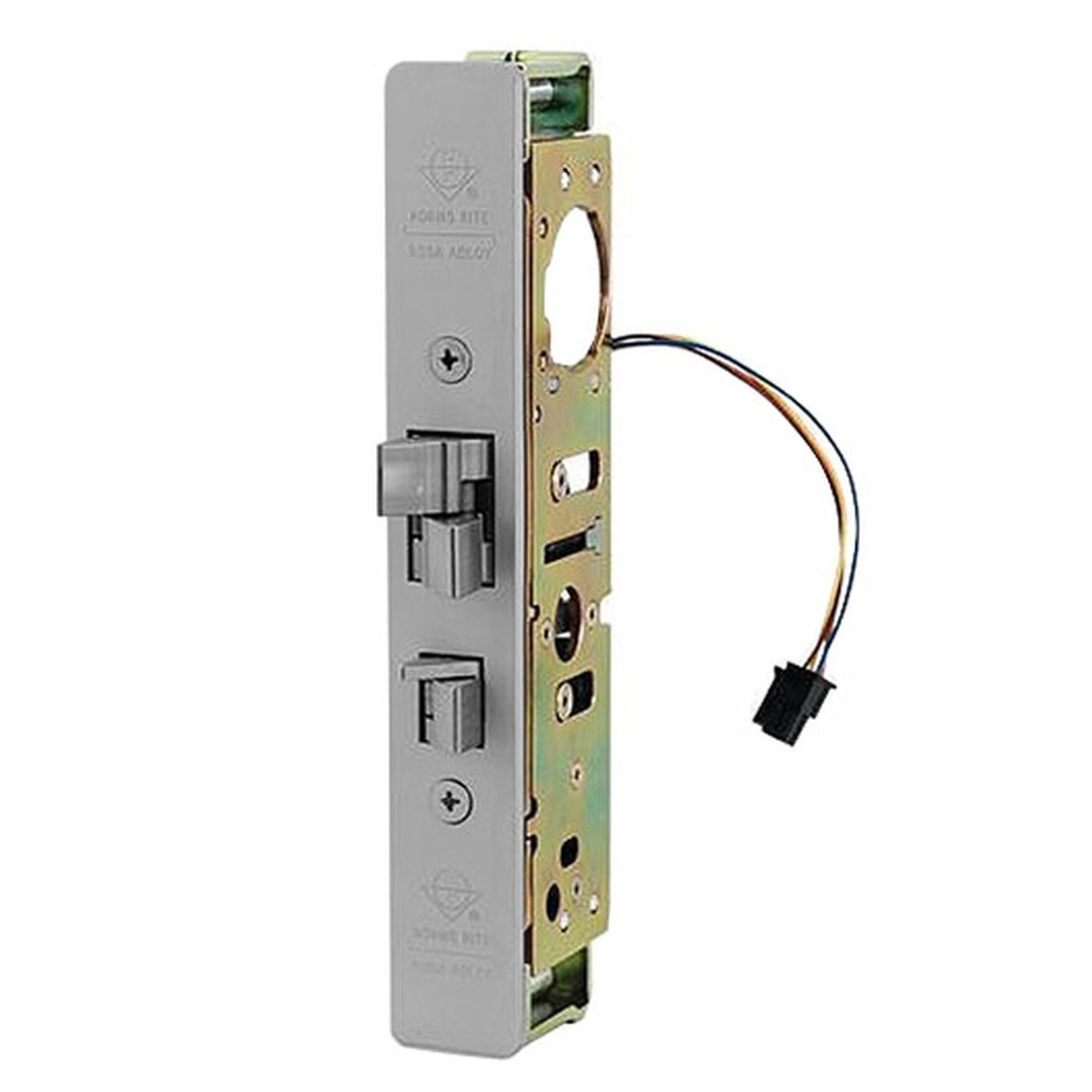

Adams Rite 4300-40-101-335 Steel Hawk Elatch Electrified Lock for Flat Surface Mount Strike in Black Anodized

The 4300-40-101-335 from Adams Rite is a Steel Hawk Elatch electrified lock for flat surface mount strike in black anodized. The 4300 series Deadlatch combines mechanical locking hardware with electrified access control while working within standard aluminum entrance door preparations. It is always operable from the inside via handle or paddle device. The entry is done via keyed mortise cylinder or access control element. To operate turn key, apply voltage and operate handle or paddle to release the spring-loaded latchbolt. It is electrically-rated for continuous duty for timed applications.

Adams Rite 4300-40-101-335 Key Features

• Black Anodized Finish: Provides a sleek, modern look while protecting the lock from corrosion.
• Aluminum Construction: Ensures lightweight yet durable performance suitable for high-traffic areas.
• Field-selectable Voltage Operation: Easily adjustable for compatibility with either 12 or 24 VAC/VDC power sources, enhancing versatility.
• Cylinder Backset: A standard 1-1/2" backset simplifies installation in most applications.
• Steel Case Design: The robust steel construction with corrosion-resistant plating contributes to longevity and reliability.
• Grade 1 Standard: Rated for high-performance security, making it ideal for commercial use.
• Minimum Door Thickness: Requires only 1-3/4" thickness, accommodating a wide range of doors.
• Universal Cam Plug: Supplied cam plug 4581 allows compatibility with specified handles or paddle operators.
• Access Control Interface: Easily integrates with existing access control systems for enhanced security management.
• Continuous Duty Rating: Electrically rated for consistent use in timed applications without overheating.
• Standard Mortise Cylinder Use: Can accommodate any standard mortise cylinder with MS cam for easy re-keying.
• Faceplate Dimensions: Measures 1" x 6-7/8", providing a standard fit for most installations.
• Stainless Steel Latchbolt: Features a durable latchbolt with a 5/8" x 1" x 5/8" throw for reliable locking.
• Non-Monitored Operation: Streamlined functionality without intricate monitoring requirements.
• Flat Strike Shape: Designed with a standard jamb lip length for straightforward installation.

Adams Rite 4300-40-101-335 Detailed Specifications
