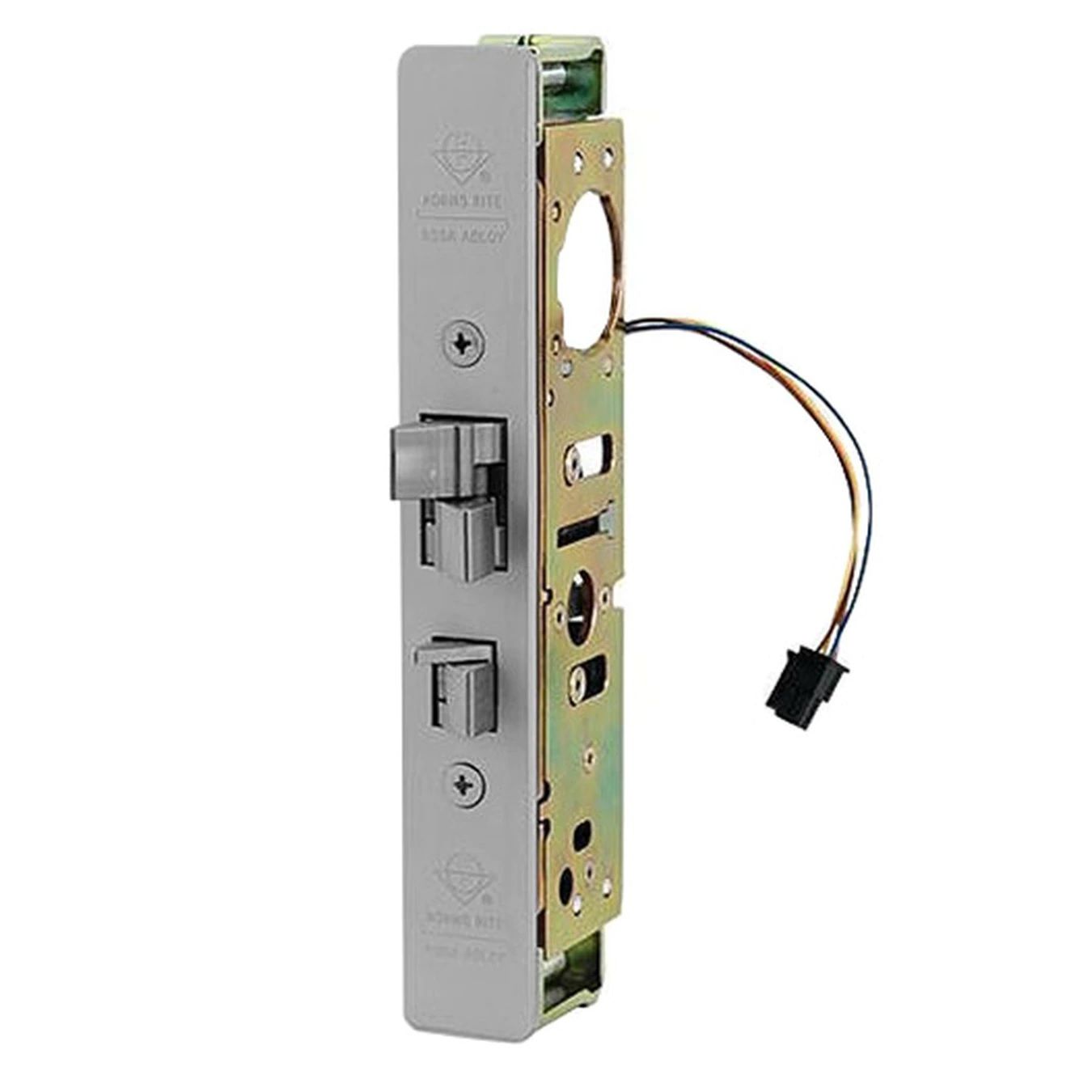

Adams Rite 4300-30-101-628 Steel Hawk Elatch Electrified Lock for Flat Surface Mount Strike in Clear Anodized

The 4300-30-101-628 from Adams Rite is a Steel Hawk Elatch electrified lock for flat surface mount strike in clear anodized. The 4300 series Deadlatch combines mechanical locking hardware with electrified access control while working within standard aluminum entrance door preparations. It is always operable from the inside via handle or paddle device. The entry is done via keyed mortise cylinder or access control element. To operate turn key, apply voltage and operate handle or paddle to release the spring-loaded latchbolt. It is electrically-rated for continuous duty for timed applications.

Adams Rite 4300-30-101-628 Key Features

• Clear Anodized Finish: Provides a sleek and professional appearance while enhancing corrosion resistance.
• Aluminum Construction: Ensures lightweight yet durable design for long-lasting performance.
• Field-selectable Voltage Operation: Can be configured for either 12 or 24 VAC/VDC, offering flexibility to match power sources.
• Cylinder Backset: 1-1/8" specification ensures compatibility with diverse installations.
• Steel Case with Corrosion-resistant Plating: Measures 15/16" x 5-13/16" in depth, enhancing durability and longevity.
• Grade 1 Standard: Ensures high security and reliability, meeting rigorous industry standards.
• 1-3/4" Minimum Door Thickness: Suitable for a variety of door types providing reliable fit and security.
• Universal Cam Plug 4581: Supplied to work with specified handles or paddle operators, enhancing versatility.
• Access Control Interface: Easily integrates with existing security systems for improved access management.
• Electrically Rated for Continuous Duty: Suitable for timed applications ensuring dependable operation.
• Standard Mortise Cylinder Compatibility: Uses any standard mortise cylinder with MS cam, simplifying user experience.
• Faceplate Dimensions: Measures 1" x 6-7/8", ensuring secure and effective mounting.
• Stainless Steel Latchbolt: Features a 5/8" x 1" x 5/8" throw for reliable locking capabilities.
• Non-Monitored Operation: Simplifies the functionality while maintaining security standards.
• Flat Strike Shape: With standard jamb lip length, provides easy installation without compromising performance.

Adams Rite 4300-30-101-628 Detailed Specifications
