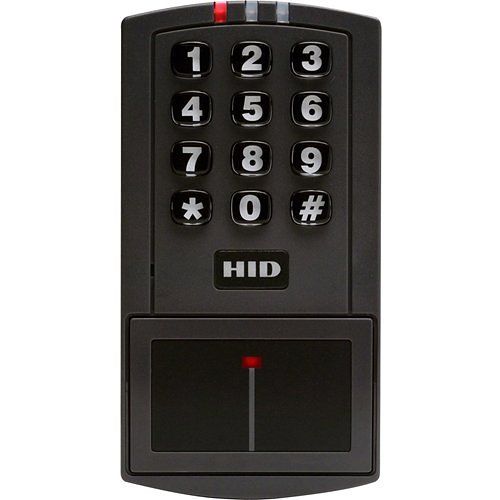

HID 4045CGNU0 EntryProx Proximity Reader
SKU
4045CGNU0
Model No
4045CGNU0
$234.96
Product Highlights
- Monitor Inputs - Door Position - N.O. dry contact. Request to Exit - N.O. dry contact
- Sounder - 4000Hz, defeatable
- Relay Outputs - Strike Relay - Form C, switches up to 1A @ 30 VDC. Aux Relay - Form C, switches up to 1A @ 30 VDC
- LEDs - Bi-Color (Red/Green), Amber, Infrared (use with Data Transfer Device (DTD) accessory)
- Operation Strike Time: 1 - 99 seconds (Adjustable); Strike Mode: Access Timer or Toggle/Latch; Door Ajar Time: 10 - 990 Seconds (Adjustable)
Speak to an expert
HID 4045CGNU0 EntryProx Proximity Reader is designed for efficient single-door access control, compatible with HID proximity cards and key tags. This versatile reader can be mounted both indoors and outdoors and supports installation up to 10 feet from the control unit using a detachable antenna. Its unique features, including adjustable timing and sound options, make it the ideal choice for various applications.
HID 4045CGNU0 EntryProx Unique Features
- Monitor Inputs: Door Position - N.O. dry contact; Request to Exit - N.O. dry contact for reliable access control monitoring.
- Sounder: 4000Hz, defeatable sounder provides audible feedback for enhanced user experience.
- Relay Outputs: Form C relays for Strike and Aux applications, capable of switching up to 1A @ 30 VDC to accommodate various devices.
- LEDs: Bi-Color (Red/Green), Amber, and Infrared indicators for clear visual signals and communication with users.
- Adjustable Operation Times: Operation Strike Time: 1 - 99 seconds; Door Ajar Time: 10 - 990 Seconds for personalized security settings.
- Card Programming: Supports 26-bit format with batch enrollment, making it easy to manage multiple users.
- Facility Code Processing: Flexible options for checking Facility Code and Card ID, ensuring secure access.
- User Programmable Options: Offers various customizable options, enhancing its adaptability to specific needs.
HID 4045CGNU0 EntryProx Specifications
| Monitor Inputs | Door Position - N.O. dry contact, Request to Exit - N.O. dry contact |
| Sounder | 4000Hz, defeatable |
| Relay Outputs | Strike Relay - Form C, Aux Relay - Form C, switches up to 1A @ 30 VDC |
| LEDs | Bi-Color (Red/Green), Amber, Infrared |
| Operation Strike Time | 1 - 99 seconds (Adjustable) |
| Door Ajar Time | 10 - 990 Seconds (Adjustable) |
| Card Programming | 26-bit format, batch enrolment; Other formats - present card to enroll |
| Facility Code Options | Check Facility Code and Card ID; Check Facility Code only (accept any ID#) |
| Options | Various user programmable options; Accessories: Security Tool 04-0001-03 |
SKU  | 4045CGNU0 |
|---|---|
| Manufacturer | HID |
