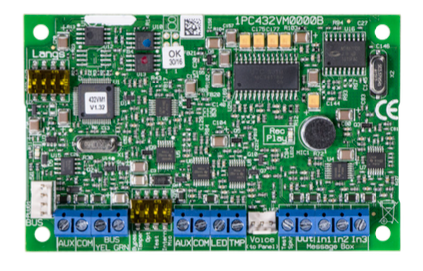

Linear 2GIG-VAR-VOICEMOD Vario Digital Voice Module

The Linear 2GIG-VAR-VOICEMOD Vario Digital Voice Module enhances communication capabilities for Vario panels, providing two-way voice communication with the Central Station to verify alarms and reduce false alarms, ideal for POTS installations. This module also features voice annunciation for zones and system states, making it an essential addition for enhanced security.

Features

• Power: 13.8 VDC +/- 10% provides reliable energy supply for efficient operation.
• Max Current Consumption: 25 mA typical / 160 mA maximum ensures low power usage while achieving peak performance.
• Main Panel Connection: RS485, 4 Wire Bus, up to 984 ft. (300m) supports long-distance installations for flexible placement.
• Contacts: Open Collector, Active Pull-Down, 70 mA max allows for integration with other systems and zones.
• Dimensions: 4.13” W x 2.6” H x 0.71” D (105 mm x 66 mm x 18 mm) compact size efficiently fits into various installations.
• Operating Temperature: 14°F to 131°F (-10°C to 55°C) ensures reliable performance in varied environmental conditions.
• Storage Temperature: -4°F to 140°F (-20°C to 60°C) protects the module from extreme temperature variations during storage.

Linear 2GIG-VAR-VOICEMOD Detailed Specifications
