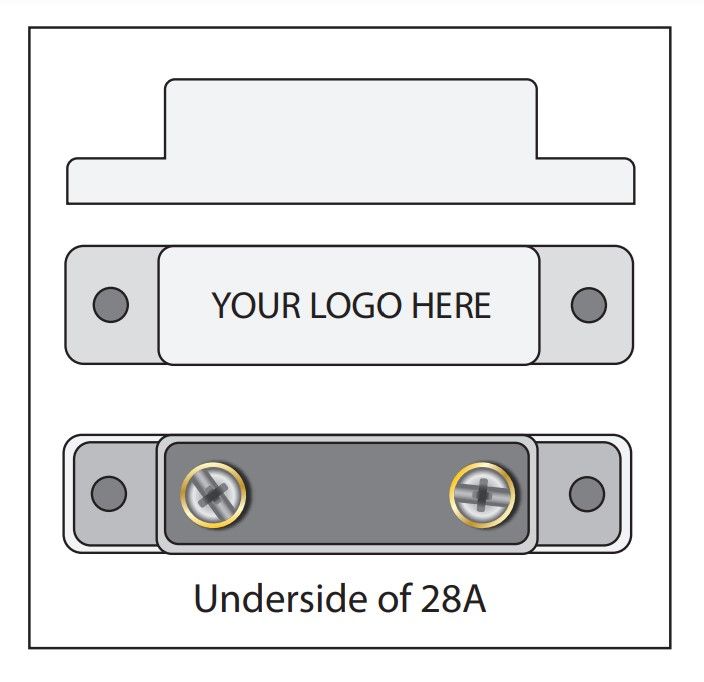

GRI 28A-B Commercial Surface Mount Switch Set 1″ and 5/8″ Closed Loop, Brown
SKU
28A-B
Model No
28A-B
$45.11
GRI 28A-B Commercial Surface Mount Switch Set 1″ and 5/8″ Closed Loop, Brown is available to buy in increments of 10
Product Highlights
Speak to an expert
This GRI 28A-B Commercial Surface Mount Switch Set is designed for both commercial and light industrial applications, providing reliable performance with a standard gap of 1 inch and options for wider gaps. Featuring a pre-wired switch with 2 feet of conductor cable, this versatile series is equipped with various installation options and includes mounting hardware for easy setup.
Features
- Industry Standard: This versatile series sets the Industry Standard for Commercial and Light Industrial applications, ensuring reliability and performance.
- Surface Mount Magnetic Contact: Easy installation on steel surfaces, optimizing utility and convenience.
- Screw Down Flanges: Provides secure attachment, minimizing risk of disengagement during operation.
- 24” #22AWG 2 Conductor Jacketed Lead: Allows for flexible installation with a robust 2-feet lead on the 29PA model.
- Concealed Screw Terminals: Enhances security and aesthetics by hiding terminals on the 28 series.
- Side Screw Terminals: Simplifies connections and enhances accessibility on the 29 series.
- Longer Leads Available: Custom lead lengths on 29PA upon request, providing tailored solutions for specific installation needs.
- Hermetically Sealed: Protects components from environmental contaminants, ensuring longevity and durability.
- Plated Contacts: Prevents sticking or freezing, enhancing operational reliability and reducing maintenance needs.
- Complete Package: Covers, spacers, and mounting hardware included for a comprehensive installation solution.
- Custom Resistors and Diodes: Built-in E.O.L. resistors and diodes available upon request, allowing enhanced functionality.
- Supervisory Loops: Designed to accommodate supervisory loops and dummy terminals upon request for added safety.
- Switches and Magnets Separately Available: Increases flexibility in installation and maintenance options.
- Color Options: Available in white, brown, and gray to fit various aesthetic preferences.
- Private Labeling: Custom branding options available upon request, making it suitable for businesses.
GRI 28A-B Commercial Surface Mount Switch Set Specifications
| Feature | Details |
|---|---|
| Standard Gap | 1 inch |
| Wide Gap | Up to 1 1/2 inches |
| Extra Wide Gap | Up to 2 inches |
| Mounting Type | Surface mount |
| Conductor Cable Length | 2 feet |
| Conductor Gauge | #22AWG |
| Sealing | Hermetically sealed |
| Color Options | White, Brown, Gray |
SKU  | 28A-B |
|---|---|
| Manufacturer | GRI |
