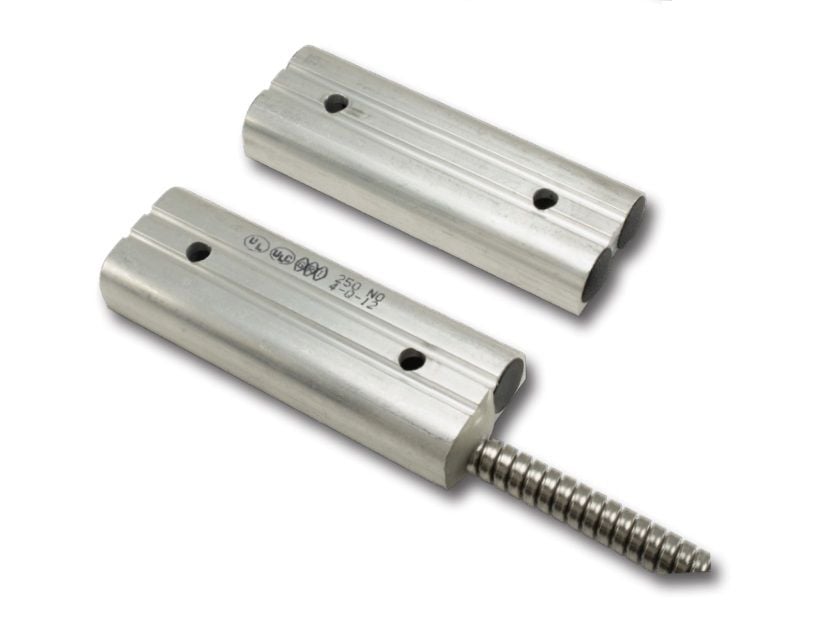

GRI 250-36 Industrial Overhead Door Switch Set 2 1/2 Gap Closed Loop

The GRI 250-36 Industrial Overhead Door Switch Set is engineered for robust performance in demanding environments. This closed loop switch set is crafted from high-quality extruded aluminum, ensuring durability and reliability under heavy operational loads. It features a hermetically sealed design and resilient plated contacts, which enhance longevity and prevent failures even in challenging conditions, making it ideal for protecting overhead doors interacting with heavy motorized traffic.

GRI 250-36 Industrial Overhead Door Switch Features

• Extruded Aluminum Housing: Provides exceptional strength and resilience against high compressive forces, rated to withstand 20,000 pounds.
• Durable Construction: Designed to resist environmental factors, ensuring reliable operation in harsh settings.
• #22AWG Stainless Steel Armored Cable: Offers superior protection for internal wiring, enhancing safety and performance.
• Hermetically Sealed: Protects internal components from dust and moisture, extending product life and reliability.
• Plated Contacts: Reduces the risk of sticking or freezing, ensuring smooth operation in extreme temperatures.
• Built-in E.O.L. Resistors and Diodes: Available upon request, providing additional configuration options for various applications.
• Supervisory Loops: Can be added upon request for monitoring access points effectively.
• Switches and Magnets Sold Separately: Offers flexibility in purchasing, allowing specific needs to be met easily.

GRI 250-36 Industrial Overhead Door Switch Specifications
