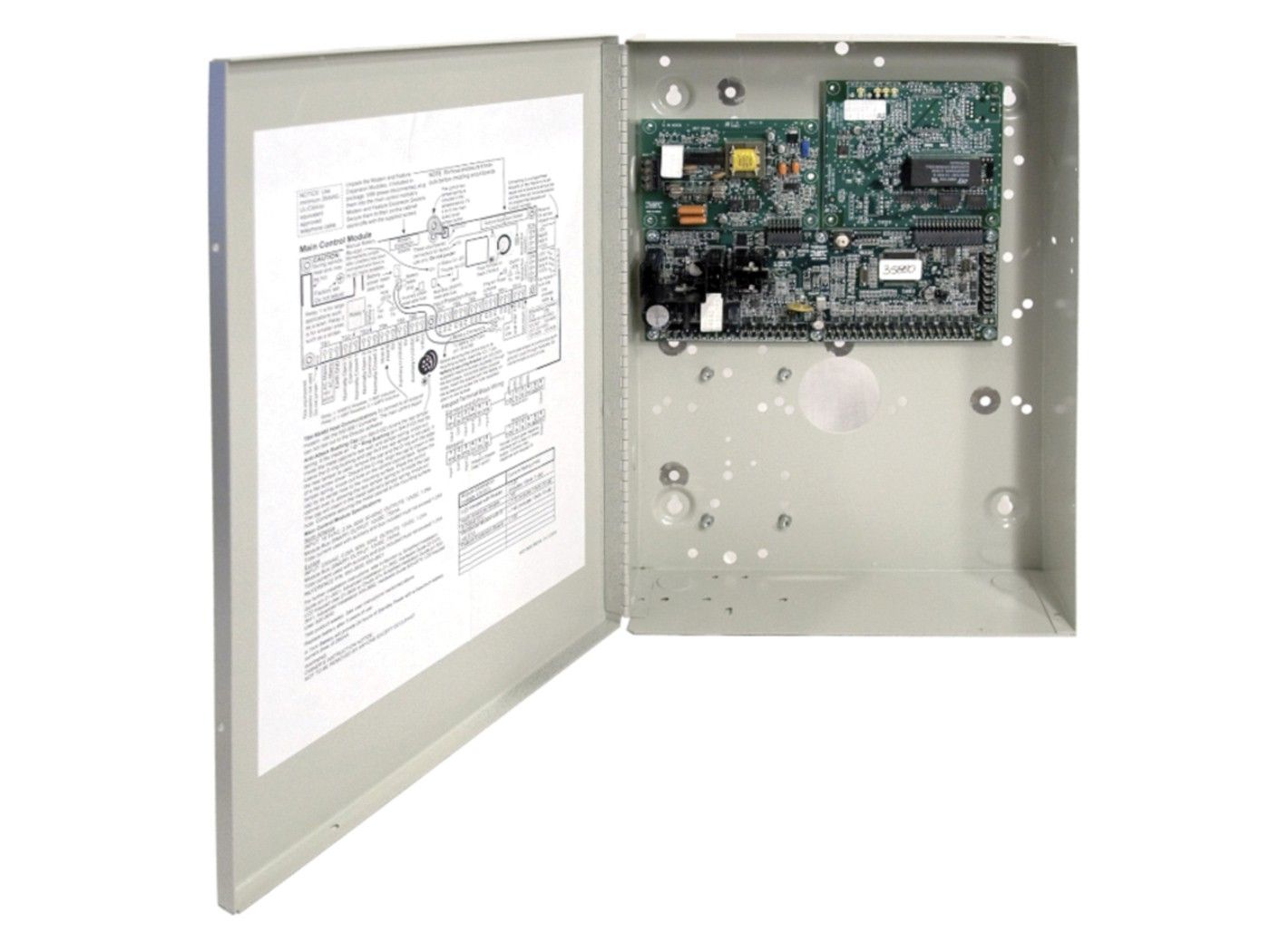

GE Security Interlogix 120-3625E Main Panel UL European Enclosure with IP Module

The 120-3625E from Interlogix is a monitor XL control panel that holds the entire user database and all system information, operating independently in non-volatile memory. The versatile Prime model supports 1,000 users, while the robust Enterprise model accommodates up to 4,000 users, expandable to 64,000 with additional memory. Configurability via the Monitor XL LCD Keypad module or Director software enhances service and diagnostics capabilities, allowing technicians to operate without disconnecting modules. This panel's unique identifier supports extensive module placement and offers significant input and output flexibility, making it an ideal choice for a comprehensive security system.

Features

• Base Prime model supports: 1,000 users, ideal for small-scale applications.
• Base Enterprise model capacity: supports 4,000 users, expandable to 64,000 with additional memory for larger installations.
• Configuration options: Use LCD Keypad module or Director software for flexible setup and diagnostics.
• Input capacity: Includes 12 inputs, expandable to 256 by adding LCD keypads and expander modules, providing extensive input connectivity.
• Relay output options: Contains two relay outputs, expandable to 128 by adding expander modules with V-BUS output for enhanced output functionality.
• Prime software capabilities: Supports one XL panel with up to 16 doors for straightforward security management.
• Enterprise software scalability: Supports 250 XL panels with a maximum of 32 doors each, totaling up to 8,000 doors per database, perfect for large facilities.
