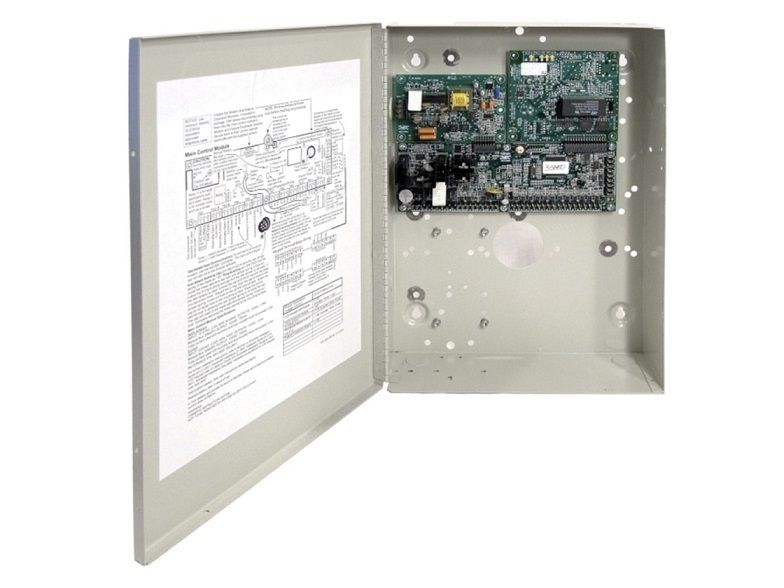

GE Security Interlogix 120-3606S Main Panel UL Spanish Enclosure with Feature Expansion Board

GE Security Interlogix 120-3606S Main Panel UL Spanish Enclosure

The 120-3606S from Interlogix is a monitor XL control panel holds the entire user database and all system information and operates independently in non-volatile memory. The base Prime model supports 1,000 users, while the base Enterprise model supports 4,000 users or up to 64,000 with additional memory. Each XL panel can be configured using either the Monitor XL LCD Keypad module or Director software. The LCD Keypad also functions as a complete configuration and diagnostics tool, allowing a technician to service and configure the control panel with no need to unplug other modules. All Monitor XL modules feature a unique identifier allowing placement of up to 24 modules of any type on the RS485 bus, or up to 60 Suite Security modules on one XL panel.

Each XL panel includes 12 inputs and can expand to 256 by adding LCD keypads and expander modules. As part of a networked system of 250 XL panels, the Director Software supports 64,000 inputs per database, configurable using any of 16 preconfigured or 20 customizable point formats. 16 diagnostic points enable system testing. Each XL panel also includes two relay outputs and can expand to 128 by adding expander with V-BUS output modules. As part of a networked system of 250 XL panels, the Director Software supports 32,000 inputs per database and up to 16 condition programmable outputs.

Features

• Base Prime model: supports 1,000 users, ideal for smaller installations with user management needs.
• Base Enterprise model: supports 4,000 users or up to 64,000 with additional memory, making it suitable for larger organizations.
• Configuration flexibility: can be configured using either the LCD Keypad module or Director software, providing options for various user preferences.
• Expandability: includes 12 inputs and can expand to 256 inputs by adding LCD keypads and expander modules, ensuring scalability for growing systems.
• Relay outputs: includes two relay outputs and can expand to 128 by adding expander with V-BUS output modules, enhancing operational capabilities.
• Software capabilities: Prime software supports one XL panel with a maximum of 16 doors, suited for simplified access control.
• Advanced system management: Enterprise and Enterprise Elite Software support 250 XL panels with a maximum of 32 doors each, allowing extensive management of up to 8,000 doors per database.

Detailed Specifications for GE Security Interlogix 120-3606S
