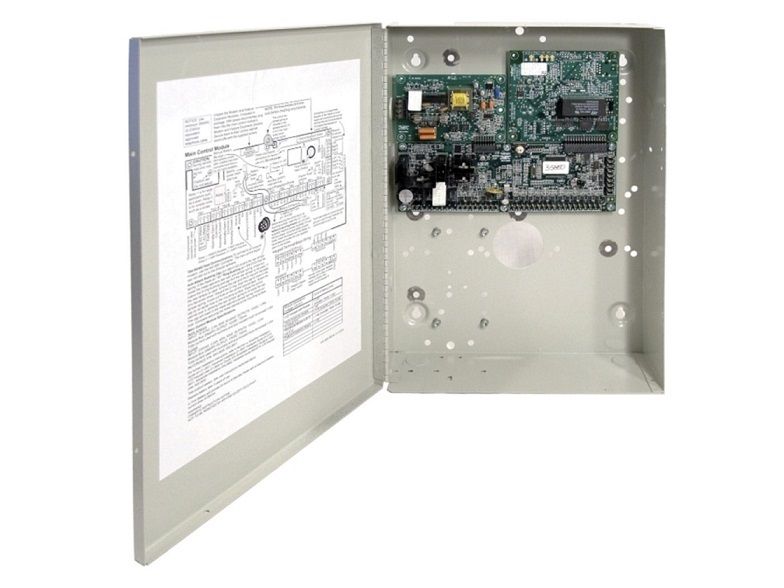

GE Security Interlogix 120-3603S Main Panel European Enclosure with Feature Expansion Board and 230V Transformer, Spanish
SKU
120-3603S
Model No
120-3603S
$426.84
Product Highlights
- Base Prime model supports 1,000 users
- Base Enterprise model supports 4,000 users or up to 64,000 with additional memory
- Can be configured using LCD Keypad module or Director software
- Includes 12 inputs and can expand to 256 by adding LCD keypads and expander modules
- Includes two relay outputs and can expand to 128 by adding expander with V-BUS output modules
Speak to an expert
The GE Security Interlogix 120-3603S Main Panel in European Enclosure is an advanced control panel designed for high-capacity system management. Featuring robust support for multiple users and unparalleled expansion capabilities, this model allows for seamless configuration and diagnostics via its LCD Keypad or Director software. Ideal for complex security systems, it accommodates up to 64,000 users with additional memory and enhances networked systems through its support for multiple XL panels.
GE Security Interlogix 120-3603S Key Features
- Base Prime Model: Supports 1,000 users, making it perfect for smaller security systems.
- Base Enterprise Model: Supports 4,000 users or expands to 64,000 with additional memory, catering to larger installations.
- Configuration Options: Can be configured using either the LCD Keypad module or Director software for versatile management.
- Expandable Inputs: Initially includes 12 inputs, expandable to 256, ensuring flexibility as system needs grow.
- Relay Outputs: Comes with two relay outputs, expandable to 128, enhancing control over attached devices.
- Software Support: Prime software manages one XL panel with a maximum of 16 doors, suitable for smaller setups.
- Enterprise Software: Supports up to 250 XL panels, providing extensive capabilities for large facilities.
Detailed Specifications for GE Security Interlogix 120-3603S
| User Capacity | Base Prime Model: 1,000 users, Base Enterprise Model: 4,000 users, expandable to 64,000 |
| Input Expansion | 12 inputs, expandable to 256 via LCD keypads and expander modules |
| Relay Outputs | 2 relay outputs, expandable to 128 with V-BUS output modules |
| Panel Configuration | Configurable using Monitor XL LCD Keypad module or Director software |
| Network Support | Supports up to 250 XL panels, accommodating extensive system management |
| Diagnostic Points | 16 diagnostic points for effective system testing |
| Point Formats | Configurable using 16 preconfigured or 20 customizable point formats |
| Maximum Doors Supported | Prime software: 16 doors, Enterprise software: 32 doors per XL panel |
SKU  | 120-3603S |
|---|---|
| Manufacturer | Interlogix |
| Touch Screen | No |
| Backlit Keypad | No Light |
