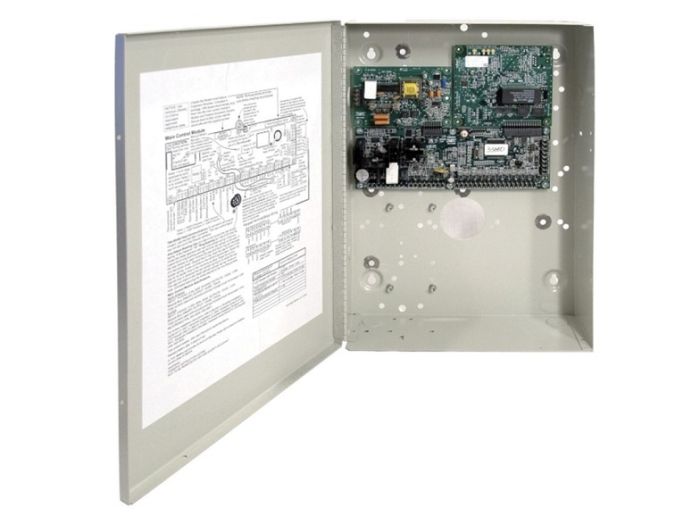

GE Security Interlogix 120-3602E Main Panel North American European Enclosure with Feature Expansion Board
- Base Prime model supports 1,000 users
- Base Enterprise model supports 4,000 users, or up to 64,000 with additional memory
- Can be configured using LCD Keypad module or Director software
- Includes 12 inputs and can expand to 256 by adding LCD keypads and expander modules
- Includes two relay outputs and can expand to 128 by adding expander with V-BUS output modules
GE Security Interlogix 120-3602E Main Panel Features
The 120-3602E from Interlogix is a monitor XL control panel that holds the entire user database and all system information, operating independently in non-volatile memory. The base Prime model supports 1,000 users, while the base Enterprise model supports 4,000 users, or up to 64,000 with additional memory. Each XL panel can be configured using either the Monitor XL LCD Keypad module or Director software. The LCD Keypad functions as a configuration and diagnostics tool, allowing technicians to service and configure the control panel without unplugging other modules. With unique identifiers for placement of up to 24 modules on the RS485 bus and up to 60 Suite Security modules on one XL panel, it's an ideal security solution for various applications.
Key Features
- Base Prime Model: supports 1,000 users, making it suitable for small to medium size applications.
- Base Enterprise Model: supports 4,000 users or up to 64,000 with added memory, perfect for large installations.
- Configuration Options: configurable using the LCD Keypad module or Director software, allowing for versatile management.
- Input Expansion: includes 12 inputs and can expand to 256, accommodating growing security needs.
- Relay Outputs: includes two relay outputs and can expand to 128 with V-BUS output modules for enhanced functionality.
- Prime Software Capability: supports one XL panel with a maximum of 16 doors, providing basic access control.
- Enterprise Software Capability: supports 250 XL panels with a maximum of 32 doors each, enabling extensive networked security coverage.
GE Security Interlogix 120-3602E Detailed Specifications
| Model | 120-3602E |
| User Capacity (Prime) | 1,000 users |
| User Capacity (Enterprise) | 4,000 users (64,000 with additional memory) |
| Configuration Options | LCD Keypad module or Director software |
| Inputs | 12 (expandable to 256) |
| Relay Outputs | 2 (expandable to 128) |
| Software Support (Prime) | 1 XL panel, maximum 16 doors |
| Software Support (Enterprise) | 250 XL panels, maximum 32 doors each |
| Networking Capability | Supports up to 250 XL panels |
| Database Inputs | 32,000 (in networked systems) |
| Programmable Outputs | Up to 16 condition programmable outputs |
SKU  | 120-3602E |
|---|---|
| Manufacturer | Interlogix |
| Touch Screen | No |
| Backlit Keypad | No Light |
