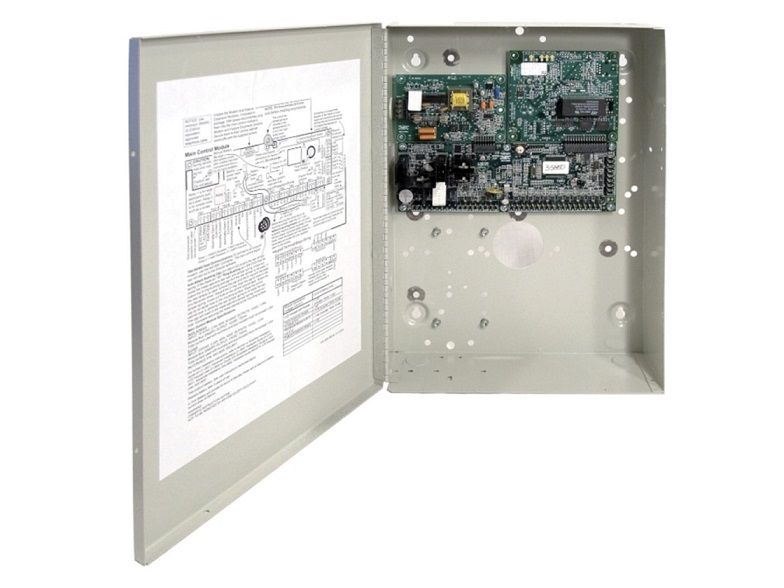

GE Security Interlogix 120-3600E Main Panel North American European Enclosure

The 120-3600E from Interlogix is a monitor XL control panel that holds the entire user database and all system information, operating independently in non-volatile memory. Its base Prime model accommodates 1,000 users, while the Enterprise model expands this to 4,000 users, or even up to 64,000 with additional memory. Configuration is user-friendly, utilizing the Monitor XL LCD Keypad module or Director software, which also serves as a diagnostics tool. Designed for scalability and performance, this control panel can expand significantly, making it ideal for diverse security needs.

Features

• Base Prime model: supports 1,000 users, making it suitable for small to medium installations.
• Base Enterprise model: accommodates 4,000 users, with expandability up to 64,000 users, providing flexibility for larger systems.
• Configuration options: can be set up using either the LCD Keypad module or Director software, ensuring ease of use for technicians.
• Expandability: comes with 12 inputs and can be expanded to 256, allowing for extensive customization of the security system.
• Relay outputs: features two relay outputs, expandable to 128 with additional modules, enhancing flexibility in system functions.
• Software capacity: Prime software supports one XL panel with 16 doors, while Enterprise software manages 250 panels with 32 doors each, enabling large-scale implementations.

GE Security Interlogix 120-3600E Detailed Specifications
