GRI 110-T-AL Miniature Surface Mount Switch Set, 1" Gap Closed Loop, Almond

This series is one of our most popular miniature surface mount switches. Available both with and without flanges, this low profile series is perfect for residential and commercial use where larger configurations are not appropriate. Incorporates into most decor without being noticeable. Available in regular and wide gap. The 100 series come with mounting screws yet all come with 3M tape for mounting on aluminum, wood or vinyl. Spacers, switch only, magnet only and additional 3M tape are also available separately. Molded covers are included with P/N 100-TC.

GRI 110-T-AL Miniature Surface Mount Switch Features

• Miniature Profile: Perfect for residential and light commercial applications, ensuring versatility in installation.
• Surface Mount Magnetic Contact: Provides reliable performance without requiring complex installation.
• Screw Down Flange or Self Stick: Offers flexible mounting options to accommodate various surfaces.
• 12” #22AWG Leads or Screw Terminals: Easy connectivity for quick installation and setup.
• Longer Leads Available: Customizable options like zip cord or jacketed cable can be provided upon request.
• Hermetically Sealed: Protects against environmental factors, enhancing durability and performance.
• Plated Contacts: Resists sticking or freezing, ensuring reliable operation in varying conditions.
• Covers and Mounting Hardware Included: Everything needed for installation is provided, simplifying the process.
• Built-in E.O.L. Resistors and Diodes: Available upon request for advanced applications.
• Supervisory Loops: Options provided upon request for enhanced system supervision.
• Switches and Magnets Available Separately: Flexibility to source components as needed.
• Private Labeling: Customization available upon request for brand-specific applications.

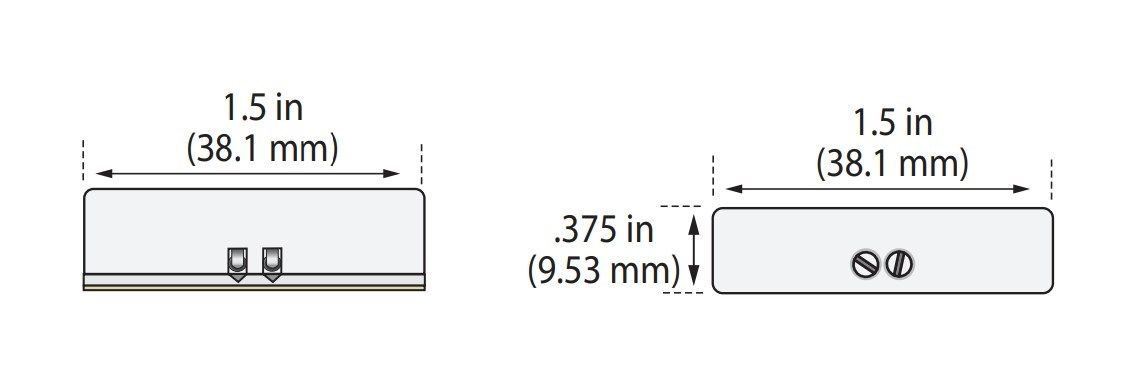

GRI 110-T-AL Detailed Specifications
