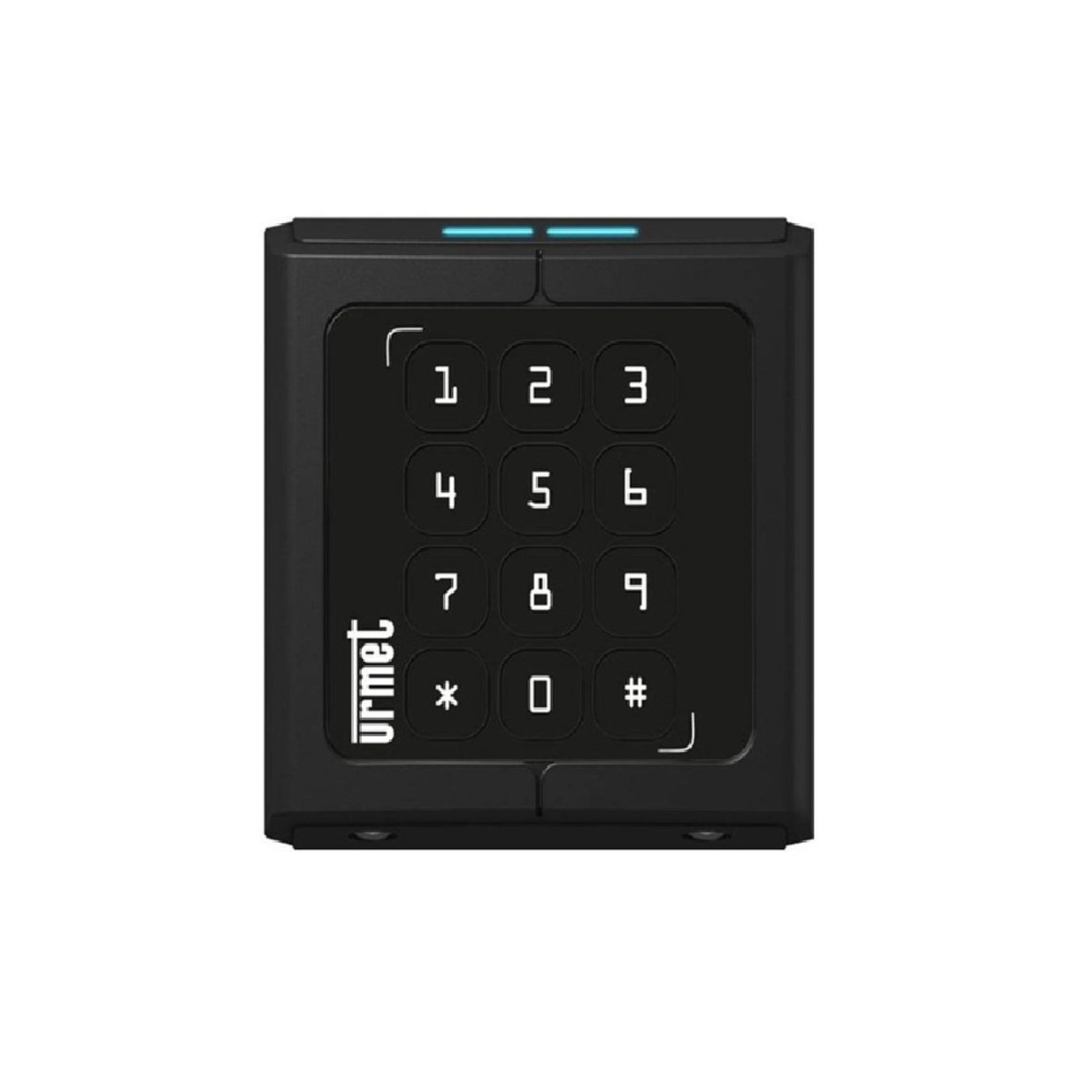

Urmet 1088-46 Mifare Plus Proximity Reader Keypad

The keypad module with proximity key reader for access control is used in the Transit+ and Ipassan systems. It allows a gate to be opened after entering a code or using Mifare Plus or Mifare tags. The device is equipped with 3 LEDs, the first is blue and indicates “Unit working”, the second is green and indicates “Access Allowed”, while the red LED indicates “Access Not Allowed”. The Bluetooth interface can only be used with the Ipassan system. 2-wire connection. Black colour.

Features

• 2-wire connection
• Maximum distance from the control unit: 100m
• Backlit keypad
• Dimensions (L x H x D): 85 x 90 x 25mm
• Tamper
• Operating temperature: -20°C ÷ +60°C
• IK Grade: 10
• IP Grade: 65
