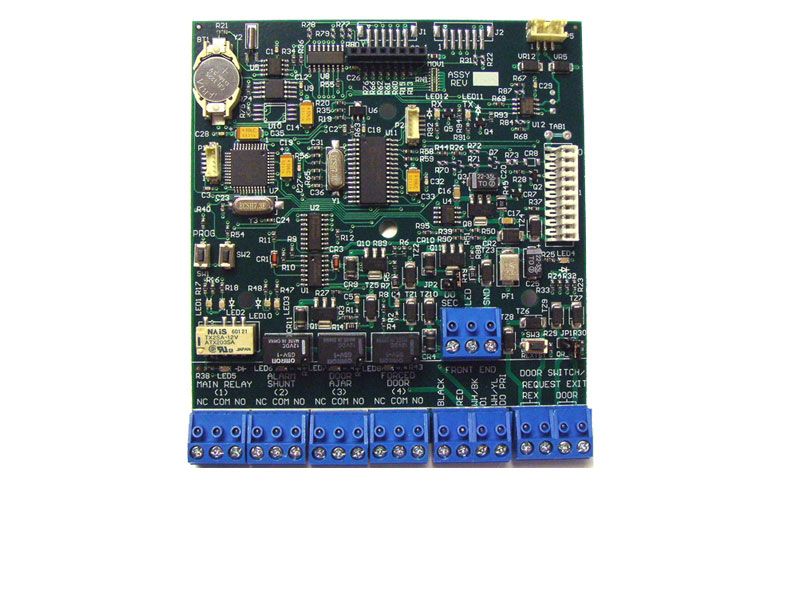

Linear Max3Mod Max3Mod Max 3 Module Single Door Access Control Module

The Max 3 Door Control Module (Model Max3Mod) provides single door access control with a wide range of features and functionality. DCM’s are added to the Max 3 cabinet for system expansion of up to 64 doors. The DCM comes installed in each MiniMax 3, and in the first bay of each Max 3 access system. All access and egress decisions are made at each DCM. When managed with Hub Manager® Professional software, the DCM supports multiple access levels to control access. The position status of a door is monitored via a set of normally closed (NC) door contacts. Depending of the state of the door, the DCM will trigger a Forced or Propped door alert while recording that event in the transaction buffer. These transactions can be viewed with Hub Manager® Professional to monitor each aggress and access point.

Features

• 2000 Users
• 2000 Transaction Event Buffer
• 8 Time zones
• 16 Holidays
• First-In auto unlock
• Forced/Propped Door
• Alarm shunt
• REX & Door monitoring inputs
