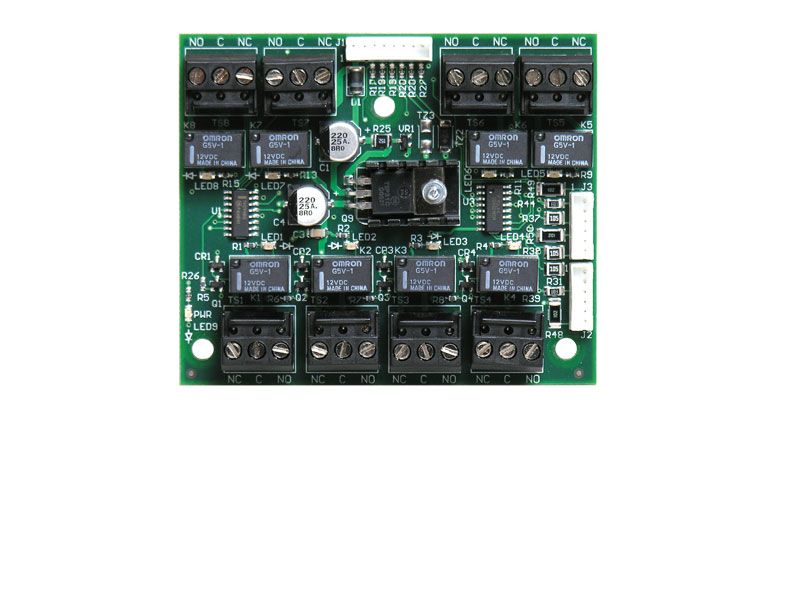

Linear M3-OM Max 3 Output Module

The Linear M3-OM Max 3 Output Module (M3-OM) enhances your Max 3 Module by providing 8 additional Form C control relay outputs, making it ideal for controlling various applications such as elevator systems, handicapped door mechanisms, and security camera operations. Its seamless integration with Max 3 systems and Hub Manager® Professional Software ensures users can easily manage multiple outputs efficiently, benefiting projects with increased accessibility and automated control options.

Features

• Addition: 8 Form C Control relay outputs to a Max 3 Module - Increases versatility for handling larger applications.
• Visualization: Power LED and individual relay status LEDs - Provides quick visual confirmation of output status.
• Customization: Ability to specify a custom name and timer value for each of the 8 outputs - Enhances user interface and operational effectiveness.
• Installation: Convenient "stackable" mounting to the Max 3 module - Facilitates easy installation and organization.
• Stability: Securely installs in Max 3 and MiniMax 3 cabinet - Ensures stability and reliability in various environments.
• Power Supply: Primary and back-up power from Max 3 or MiniMax 3 system - Guarantees continuous operation in case of power failure.
• Setup: Plug and play design - Allows for straightforward setup without the need for extensive technical knowledge.

Linear M3-OM Max 3 Output Module Specifications
