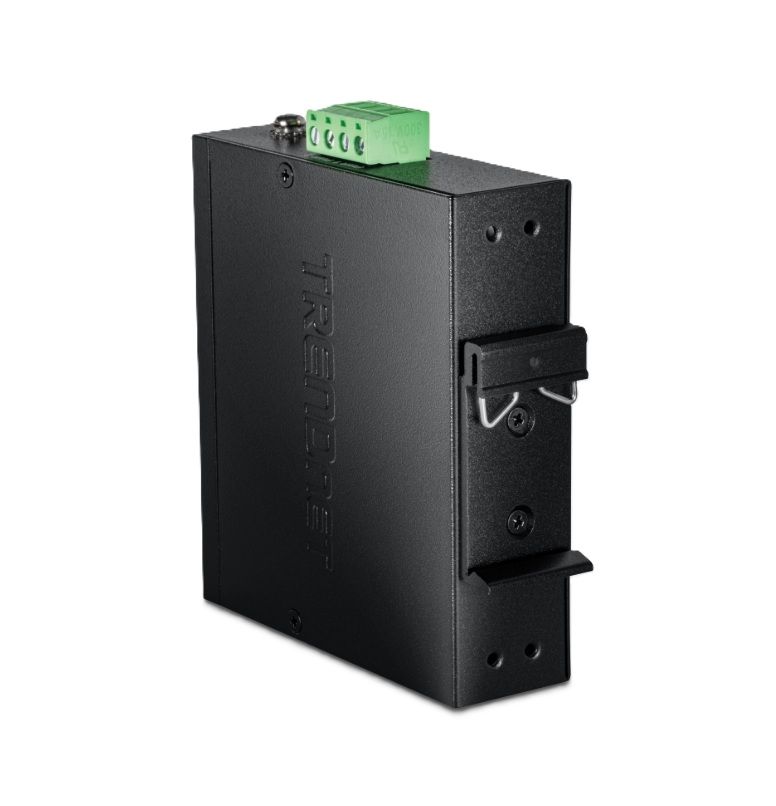

TRENDnet TI-SG704 Industrial 10G PoE++ Splitter

TRENDnet’s Industrial 10G PoE++ Splitter, model TI-SG704, networks a non-PoE device by using a 10G PoE++ connection and splitting it into separate DC power and data sources. The industrial 10G PoE++ splitter can power up to two devices from a single PoE source. A convenient DIP switch on the industrial PoE++ splitter adjusts output power to 12V, 16V, 24V, or 48V to match varying power requirements for non-PoE devices. The industrial 10G PoE++ splitter’s multiple power outputs provide greater device compatibility.

PoE++ Powered

No power adapter necessary; the PoE++ splitter takes a PoE++ network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328 ft.) away.

Adjustable Voltage Output

Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A), or 48V (1.25A) to accommodate varying non-PoE device power requirements.

Flexible Mounting Options

The industrial 10G PoE++ splitter’s wall and DIN-Rail mounting options provide better setup flexibility and accommodate most installation scenarios.

Features

• Power a non-PoE device up to 100m (328 ft.) away from PSE
• Splits a 10G 90W PoE++ signal into separate power and data sources
• Adjustable voltage output supports 12V, 16V, 24V, or 48V devices
• Extreme operating temperature range -40 to 75° C (-40 to 167° F)
• IEEE 802.3bt compliant
• For best performance pair with TRENDnet PoE++ switches or injectors
• NDAA / TAA compliant (U.S. and Canada only)
