TRENDnet TI-IG290 95W 2 Port Industrial 2.5G PoE

TRENDnet’s 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100 meters (328 ft.) to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W. The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 158° F) for harsh industrial environments.

Features

• 2 x 2.5G PoE++ ports (Data + PoE out): Enables simultaneous data and power transmission to two devices.
• 2 x 2.5G ports (Data in): Provides data input capability for integrated network solutions.
• 180W PoE power budget: Allows for dynamic power distribution across connected devices.
• Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices: Compatible with a wide range of power needs, ensuring versatility.
• Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards: Enhances interoperability with various network devices.
• Network a PoE device located up to 100m (328 ft.) away: Facilitates installations in expansive environments.
• Fanless design eliminates operating noise: Ensures silent operation for noise-sensitive environments.
• Extreme operating temperature range -40 to 75 °C (-40 to 167 °F): Suitable for harsh industrial conditions.

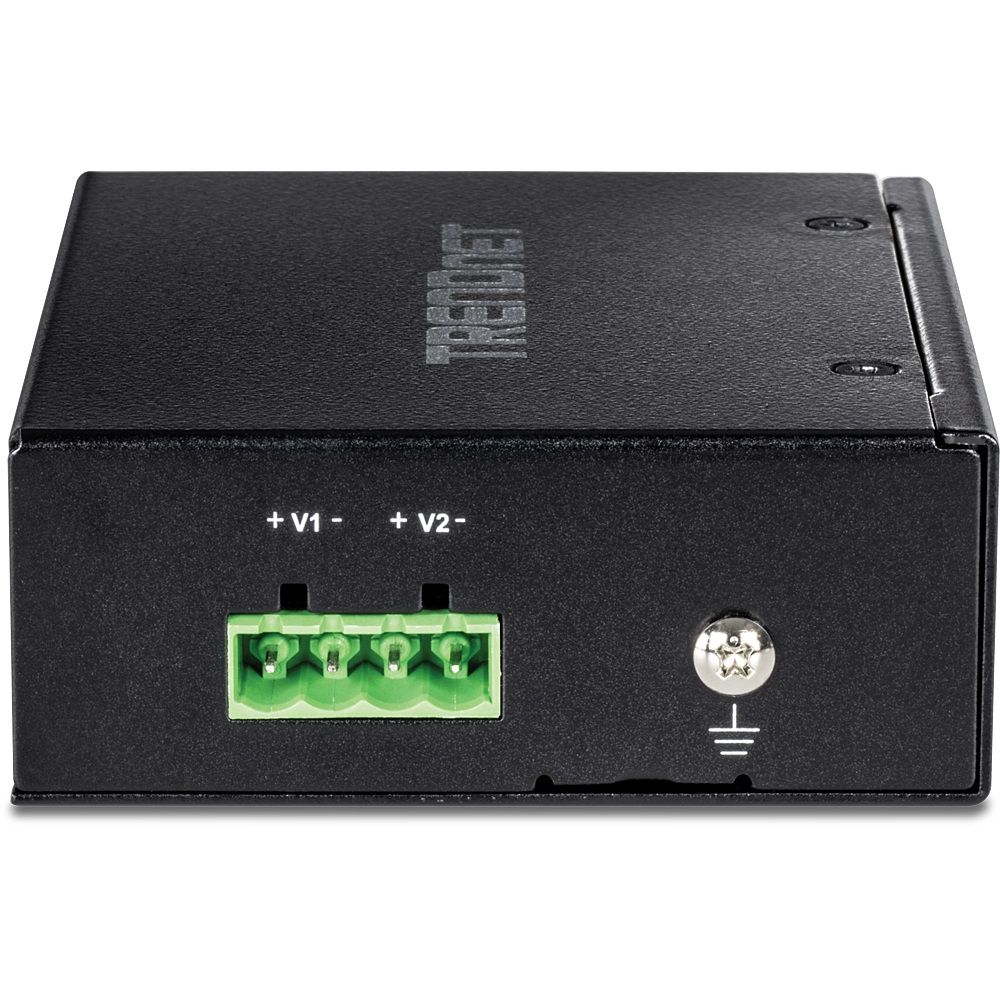

• Redundant power inputs with overload current protection: Enhances reliability and protects connected devices.

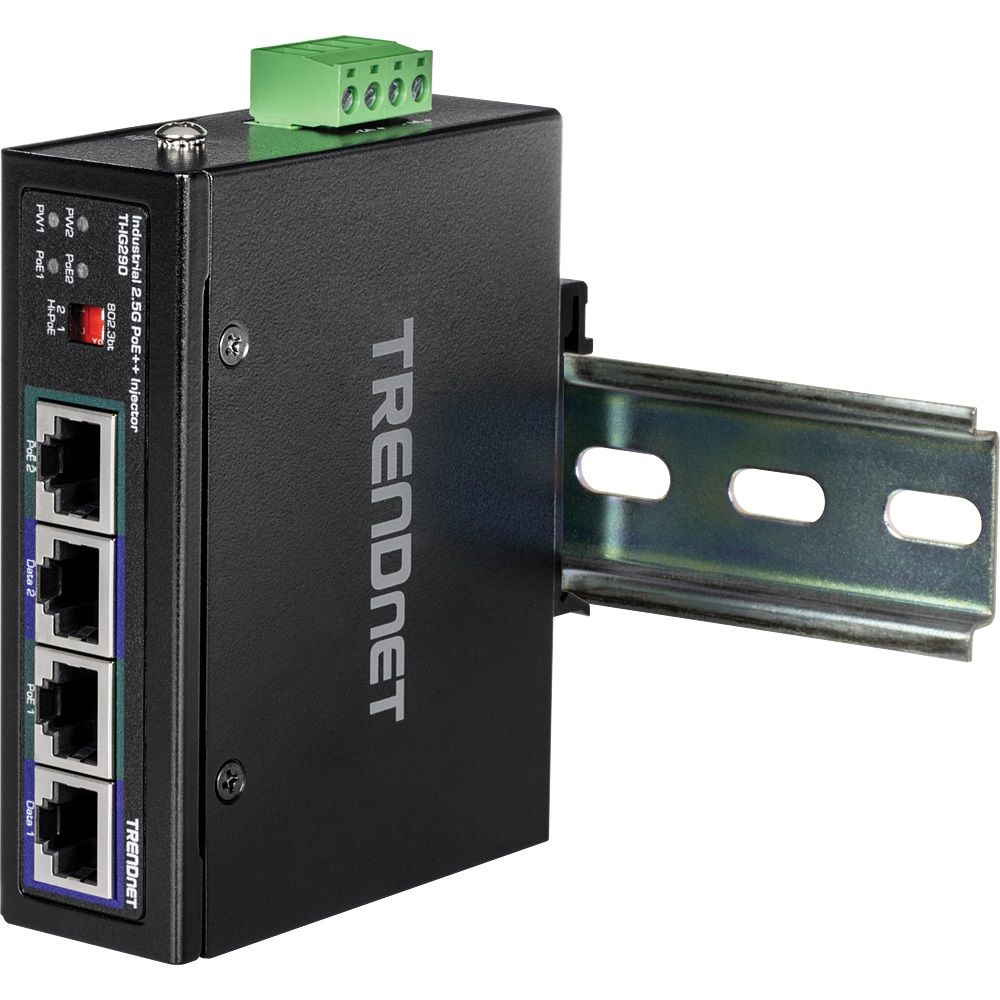

• Includes DIN-Rail mount and wall mount: Offers flexible installation options.

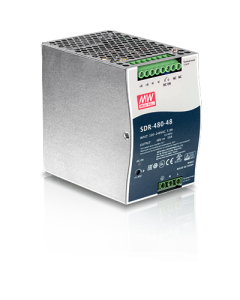

• Power supply sold separately (model TI-S24048): Allows for tailored power solutions to meet specific needs.

TRENDnet TI-IG290 Specifications
