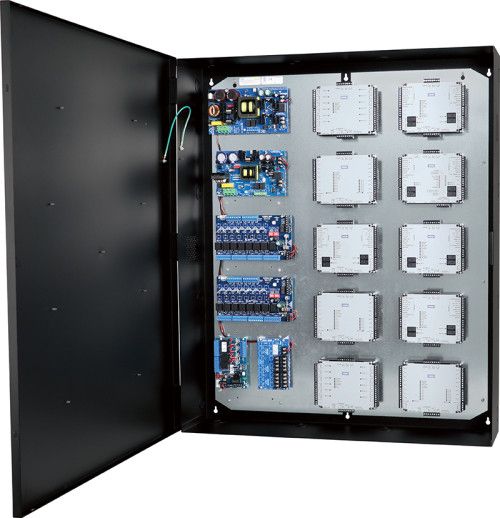

Altronix T3VK7520D 20-Door Altronix/HID VertX® Access and Power Integration Kit
SKU
T3VK7520D
Model No
T3VK7520D
$1,777.00
Product Highlights
- Main Fuse: 5A / 250V
- Voltage: 24VDC
- Current: 10A @ 24VDC continuous max
- Other: Overvoltage protection. Filtered and regulated
- Voltage: 115VAC, 60Hz, 2.6A max
Speak to an expert
The Altronix T3VK7520D 20-Door Access and Power Integration Kit simplifies access control installations while providing robust power support. This all-in-one solution includes a Trove3 enclosure, multiple power supplies, and various access power controllers accommodating up to twenty doors. Its advanced features, such as overvoltage protection and battery backup, ensure reliable operation and reduced installation time, making it an excellent choice for any commercial environment.
Altronix T3VK7520D Access Kit Features
- Integration: Combines power and access control in a single kit, which simplifies installation and reduces labor costs.
- Power Supply: Features one 24VDC @ 10A and one 12VDC @ 10A power supply, ensuring adequate power delivery for various components.
- Access Controllers: Two 8-output and one 4-output PTC controllers provide expanded control options for door access management.
- Battery Backup: Includes 7AH / 12VDC capacity for uninterrupted power, ensuring reliability during AC loss.
- Environmental Readiness: Rated for a wide operating temperature range (0° C to 50° C), making it suitable for various climates.
Altronix T3VK7520D Detailed Specifications
| Feature | Details |
|---|---|
| Power Supply 1 (AL1024ULXB2) | 24VDC, 10A @ 24VDC continuous max |
| Power Supply 2 (AL1012ULXB) | 12VDC, 10A @ 12VDC continuous max |
| Battery Backup | 7AH /12VDC (4 within enclosure); Type: Sealed lead acid or gel type |
| Access Controllers | Two ACM8CB (8 outputs each) and one ACM4CB (4 outputs), controllable independently |
| PTC Rating | 2.5A per output for reliable performance |
| Operating Temperature | 0° C to 50° C (32° F to 122° F) |
| Storage Temperature | -20° C to 70° C (-4° F to 158° F) |
| Relative Humidity | 85% +/- 5% |
| BTU Output | 177 BTU/Hr |
SKU  | T3VK7520D |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Version | Indoor Wallmount |
| Input Voltage | 115VAC |
| Number of Outputs | 8 |
| Output Protection | PTC |
| Power Options | 10 amp @ 24VDC |
| Certifications | CE |
