Altronix T3SSK7528 28-Door Altronix/Lenel-S2 Access and Power Integration Kit
SKU
T3SSK7528
Model No
T3SSK7528
$1,914.04
Product Highlights
- Main Fuse: 5A / 250V
- Voltage: 24VDC
- Current: 10A @ 24VDC continuous max
- Other: Overvoltage protection. Filtered and regulated
- Voltage: 115VAC, 60Hz, 2.6A max
Speak to an expert

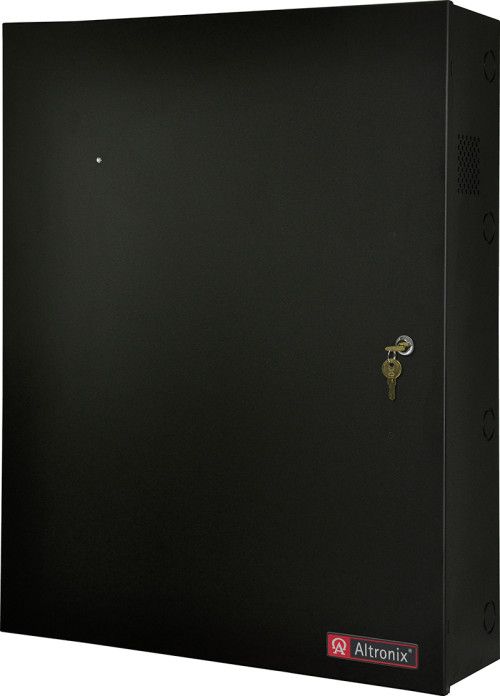

Altronix T3SSK7528 is a comprehensive 28-door access control and power integration kit featuring a Trove3 enclosure and advanced power supply systems designed for security applications. This kit is perfect for simplifying board layout and wire management while providing reliable power solutions, reducing installation time, and minimizing labor costs.
Altronix T3SSK7528 Key Features
- Versatile Integration: Supports up to 28 doors in a single enclosure, providing extensive coverage for complex security needs.
- Efficient Power Supply: Equipped with one 24VDC @ 10A and one 12VDC @ 10A power supply, ensuring reliable performance across systems.
- Comprehensive Protection: Features overvoltage protection and filtered, regulated power, maintaining system integrity.
- Robust Backup: Includes a battery backup with a capacity of 12AH/12VDC, providing seamless operation during power failures.
- Fast Installation: The Trove3 design facilitates quick and easy installation, reducing overall labor time and costs.
Altronix T3SSK7528 Detailed Specifications
| Feature | Detail |
| Power Supply/Charger 1 | AL1024ULXB2: Input: 115VAC, 60Hz, 4.2A max; Output: 24VDC, 10A max; Overvoltage protection. |
| Power Supply/Charger 2 | AL1012ULXB: Input: 115VAC, 60Hz, 2.6A max; Output: 12VDC, 10A max; Overvoltage protection. |
| Battery Backup | 12AH/12VDC (2 within enclosure); Sealed lead acid or gel type; Instantaneous failover upon AC loss. |
| Access Power Controllers | Three ACM8 units with eight 24VDC independently controlled outputs; Fail-Safe and/or Fail-Secure outputs. |
| Power Distribution Modules | Two PD16W modules output 12VDC with 3.5A/250V output fuses. |
| Environmental Specifications | Operating temperature: 0° C to 49° C; Storage temperature: -20° C to 70° C; Relative Humidity: 85% +/- 5%. |
| LED Indicators | Indicates AC presence, DC output power, battery status; Provides real-time monitoring of electrical status. |
| Overall BTU Consumption | Approximately 289 BTU/Hr, optimizing heat management within the enclosure. |
SKU  | T3SSK7528 |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Version | Indoor Wallmount |
| Input Voltage | 115VAC |
| Number of Outputs | 8 |
| Output Protection | Fuse |
| Power Options | 10 amp @ 24VDC |
| Certifications | CE |
