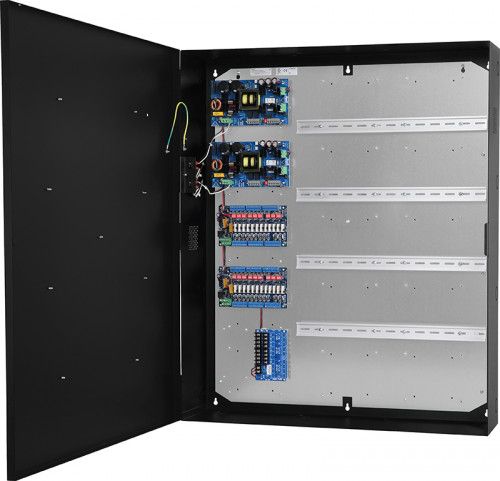

Altronix T3DK77F24D 24-Door Altronix/DIN Rail Access and Power Integration Kit
SKU
T3DK77F24D
Model No
T3DK77F24D
was $2,038.00 Special Price $2,002.00
Product Highlights
- Two (2) 24VDC power supply/chargers
- Accommodates any DIN Rail mountable products
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
- 16 AWG galvanized steel backplane simplifies board layout and wire management
- Low Battery and Battery Presence
- Low power shutdown
- One (1) single knockout 2.415” (2” Conduit)
Speak to an expert
The Altronix T3DK77F24D 24-Door Access and Power Integration Kit is designed to streamline security management by integrating access control and power distribution in a single solution. With its robust design, this kit supports up to 24 doors, ensuring efficient power delivery and control for multiple access points. By simplifying installation and wire management, the T3DK77F24D minimizes labor costs while maximizing system performance.
Altronix T3DK77F24D Access Control Features
- Enhanced Power Supply: Two eFlow104NTB power supply/chargers provide a reliable 24VDC @ 10A output, ensuring consistent operation across access control components.
- Robust Battery Charging: Capable of charging sealed lead acid or gel batteries, this kit supports emergency backup with instantaneous failover upon AC loss, safeguarding your system during power interruptions.
- Smart Supervision: With AC failure and battery contact supervision, the kit protects against deep battery discharge, ensuring long-term reliability and performance.
- LED Indicator Lights: Clear visual indicators for power status and output signals make monitoring easy, providing immediate feedback on system health.
- Flexible Power Distribution: The PD8ULCB power distribution module offers 24VDC outputs with PTC protections, ensuring safe and efficient power management across multiple outputs.
- Dual Input Control: Features two ACMS12 Dual Input Access Power Controllers, providing independently controlled power outputs for flexible installation options.
Altronix T3DK77F24D Detailed Specifications
| Feature | Details |
|---|---|
| Input Voltage | 120VAC, 60Hz, 4.5A |
| Output Voltage | 24VDC @ 10A |
| Auxiliary Output | 1A (unswitched) |
| Low DC Power Shutdown | Prevents deep battery discharge |
| Operating Temperature | 0° C to 49° C (32° F to 120° F) |
| Storage Temperature | -20° C to 70° C (-4° F to 158° F) |
| Relative Humidity | 85% +/- 5% |
| Power Consumption | 263 BTU/Hr |
| Battery Capacity | 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure) |
| PTC Ratings | 2.5A |
SKU  | T3DK77F24D |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Version | Indoor Wallmount |
| Input Voltage | 120VAC |
| Number of Outputs | 12 |
| Output Protection | PTC |
| Fire Alarm Interface | No |
| Battery Charging | Yes |
| Power Options | 10 amp @ 24VDC |
| Certifications | CE |
