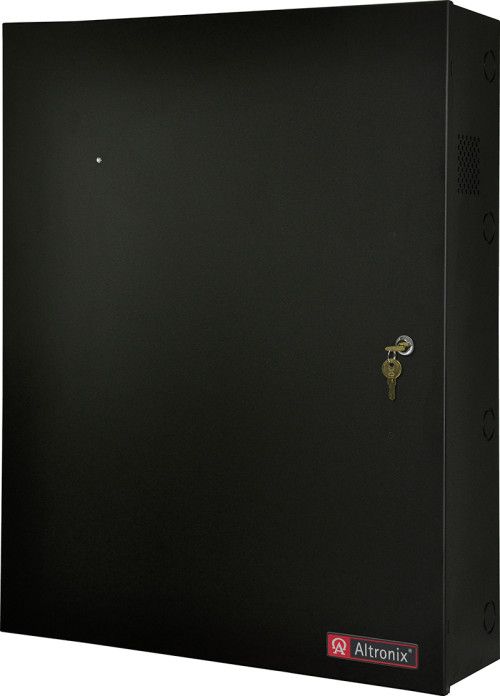

Altronix T3CVK7720D 20-Door Altronix/CDVI Access and Power Integration Kit
SKU
T3CVK7720D
Model No
T3CVK7720D
$1,729.95
Product Highlights
- Main Fuse: 5A / 250V
- Voltage: 24VDC
- Current: 10A @ 24VDC continuous max
- Other: Overvoltage protection. Filtered and regulated
- Capacity: 12AH /12VDC (2 within enclosure), 40 AH / 65 AH (requires separate enclosure)
Speak to an expert
The Altronix T3CVK7720D 20-Door Altronix/CDVI Access and Power Integration Kit offers an efficient solution designed for multi-door access control systems. With a robust configuration featuring a Trove3 enclosure, dual power supplies, and multiple output options, this kit ensures reliable power distribution and management for up to twenty doors. Its thoughtful design simplifies installation and helps reduce labor costs while providing exceptional performance and safety features.
Altronix T3CVK7720D Access and Power Integration Kit Features
- Versatile Power Supply: Two (2) AL1024ULXB2 power supply/chargers deliver 24VDC at 10A maximum, ensuring consistent and regulated power for your systems.
- Battery Backup: Includes battery capacity options of 12AH /12VDC for seamless operation during power outages and instant failover for uninterrupted functionality.
- Comprehensive Supervision: AC and battery failure notifications via Form “C” contacts to keep users informed about the system's status, enhancing safety and reliability.
- Indicators LED: Multiple LED indicators provide visual feedback for input power, DC output, and battery status, making troubleshooting easier.
- Multiple Access Controllers: Two (2) ACM8CB and one (1) ACM4CB access power controllers allow for customized configurations, catering to various power output needs.
- Environmentally Friendly: Designed to operate within a wide range of temperatures (0° C to 49° C), suitable for most indoor environments, with a relative humidity tolerance of 85% ± 5%.
Detailed Specifications for Altronix T3CVK7720D
| Feature | Details |
|---|---|
| Voltage Input | 115VAC 60Hz, 4.2A max |
| Main Fuse | 5A / 250V |
| Output Voltage | 24VDC |
| Maximum Output Current | 10A @ 24VDC continuous |
| Battery Capacity | 12AH /12VDC (2 included), 40 AH / 65 AH (requires separate enclosure) |
| LED Indicators | Input present, Powered, Battery discharged/not connected |
| Output Ratings | PTCs: 2.5A |
| Operating Temperature | 0° C to 49° C (32° F to 120° F) |
| Storage Temperature | -20° C to 70° C (-4° F to 158° F) |
| Relative Humidity | 85% ± 5% |
| Power Consumption | 263 BTU/Hr |
SKU  | T3CVK7720D |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Version | Indoor Wallmount |
| Input Voltage | 115VAC |
| Number of Outputs | 8 |
| Output Protection | PTC |
| Power Options | 10 amp @ 24VDC |
| Certifications | CE |
