Altronix T3CVK7720 20-Door Altronix/CDVI Access and Power Integration Kit

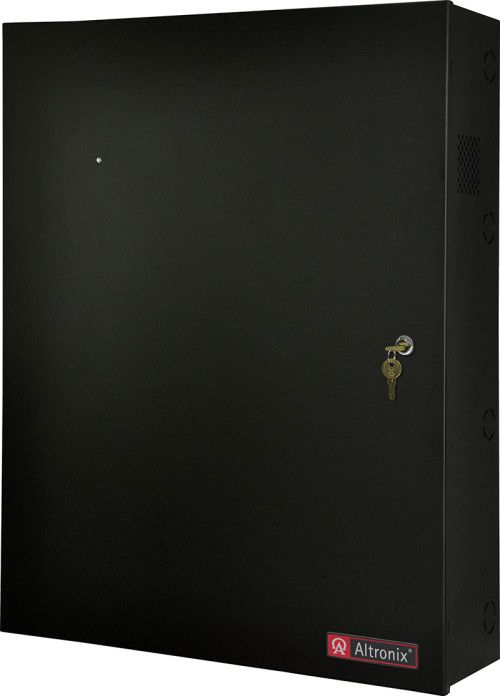

Introducing the Altronix T3CVK7720 20-Door Access and Power Integration Kit, a comprehensive solution designed for seamless access control management. This kit features an advanced Trove3 enclosure, a powerful backplane, multiple power supply/chargers, and a variety of output options, allowing you to efficiently manage and power up to twenty doors. With its streamlined design, this system reduces installation time, labor costs, and enhances overall performance.

Features

Altronix T3CVK7720 Power Supply Features

• Two (2) AL1024ULXB2 Power Supply/Chargers: Provide reliable power supply with overvoltage protection, ensuring safe operation.
• Input Voltage: Operates at 115VAC 60Hz, ensuring compatibility with standard electrical systems.
• Outputs: Delivers 24VDC with a continuous current of 10A max, ideal for powering multiple devices simultaneously.
• Battery Backup: Features a 12AH sealed lead acid battery for uninterrupted power during AC loss.
• Supervision: AC and battery failure alerts provide added security and monitoring capabilities.

Altronix T3CVK7720 Access Control Features

• Two (2) ACM8 Access Power Controllers: Offers eight independently controlled outputs, enhancing flexibility for access control management.
• ACM4 Access Power Controller: Provides additional four outputs, supporting various configurations for fail-safe and fail-secure options.

Altronix T3CVK7720 Power Distribution Features

• PD8UL Power Distribution Module: Ensures reliable power distribution with eight fuse-protected outputs for maximum safety.
• Output Specifications: Max output current of 3.5A per output ensures optimal performance without overloading.

Altronix T3CVK7720 Environmental Specifications

• Operating Temperature: Great performance in temperatures ranging from 0° C to 49° C (32° F to 120° F).
• Relative Humidity: Handles humidity levels up to 85% (+/- 5%) for versatile environmental adaptability.

Altronix T3CVK7720 Detailed Specifications
