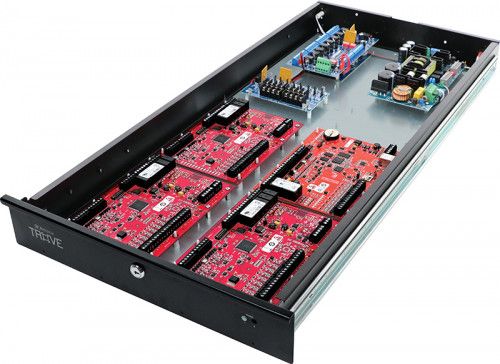

Altronix T2RM7F8SDV 8-Door Altronix/Mercury Access & Power Integration Kit
SKU
T2RM7F8SDV
Model No
T2RM7F8SDV
$1,897.00
Product Highlights
- 24VDC power supply/charger
- 16 AWG galvanized steel backplane simplifies board layout and wire management
- 6’ IEC320 3-wire power cord
- 2U drawer on extendable rails(minimum 40”, maximum 48”)
- Included Z Bracket facilitates ease of wiring
- Includes cam lock, tamper switch and mounting hardware
- Six (6) 1.25” diameter knockouts located on the back of enclosure
Speak to an expert
Introducing the Altronix T2RM7F8SDV 8-Door Access & Power Integration Kit, an all-in-one solution designed for efficient access control management. This remarkable kit features a robust enclosure that simplifies installation, combined with a powerful 24VDC @ 10A power supply and multiple PTC protected outputs. Ideal for building security, this kit ensures optimal performance and reliability, accommodating up to eight doors with integrated wire management and a range of Mercury boards, minimizing labor costs while maximizing security capabilities.
Altronix T2RM7F8SDV Key Features
- Power Supply: 24VDC @ 10A power supply/charger provides robust energy for multiple devices.
- Access Control Module: Dual input module with eight PTC protected outputs, ensuring safety and reliability.
- Voltage Regulator: Incorporates a VR6 voltage regulator for stable 12VDC output, offering seamless power distribution.
- Easy Installation: Trove design simplifies layout and wire management, significantly speeding up installation processes.
- Battery Backup: Instantaneous failover upon AC loss guarantees uninterrupted operation during power outages.
- Environmental Resilience: Designed to operate in temperatures from 0° C to 49° C (32° F to 120° F) with high humidity tolerance.
Altronix T2RM7F8SDV Detailed Specifications
| Feature | Details |
|---|---|
| Power Supply | eFlow104RLBV, 220VAC input (working range 198VAC - 256VAC), 10A output, with overvoltage protection. |
| Input / Main Fuse | Voltage: 220VAC, 50/60Hz, 2.7A; Fuse: 6.3A/250V. |
| Output Voltage | 24VDC @ 10A, auxiliary 1A (unswitched) with filtered and regulated supply. |
| Battery Charging | Supports sealed lead acid or gel type batteries with instantaneous failover on AC loss. |
| Supervision | Form "C" contacts for AC failure and battery monitoring; prevents deep discharge of batteries. |
| Indicators | LED indicators for input, output powered status, outputs triggering, and FACP disconnect. |
| Environmental | Operating temperature: 0° C to 49° C; Storage temperature: -20° C to 70° C; Relative Humidity: 85% +/- 5%. |
| BTU/Hr | Approximately 123 BTU/hr for energy efficiency considerations. |
SKU  | T2RM7F8SDV |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Input Voltage | 220VAC |
| Number of Outputs | 8 |
| Output Protection | PTC |
| Fire Alarm Interface | Yes |
| Battery Charging | Yes |
| Power Options | 10 amp @ 24VDC |
| Certifications | CE |
