Altronix T2RM7F8SD 8-Door Altronix/Mercury Access & Power Integration Kit
SKU
T2RM7F8SD
Model No
T2RM7F8SD
$1,897.00
Product Highlights
- Voltage: 120VAC, 60Hz, 4.5A max
- Fuse Rating: 15A/32V
- AC Failure: Form ″C″ contacts
- Battery: Form ″C″ contacts
- Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) indepently controlled Form ″C″ relay outputs:
Speak to an expert

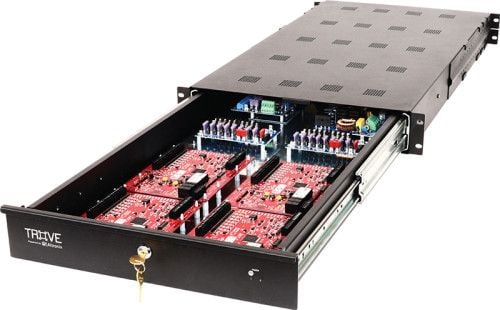

Introducing the Altronix T2RM7F8SD 8-Door Access & Power Integration Kit, a comprehensive solution for your access control needs. This kit features a Trove2M2R enclosure, a reliable power supply/charger, a dual input access power controller, a voltage regulator, and a power distribution module, all designed to simplify installation and management of access control systems. With the ability to support various Mercury boards, this kit ensures flexible configurations for up to eight doors.
Altronix T2RM7F8SD Key Features
- eFlow104NB Power Supply/Charger: Provides reliable 24VDC @ 10A output for continuous operation.
- Access Control Capabilities: Supports up to eight doors with various combinations of Mercury boards, optimizing system design.
- Auto Battery Backup: Instantaneous failover upon AC loss ensures uninterrupted performance.
- Environmental Range: Operates efficiently in temperatures from 0° C to 49° C, suitable for diverse installations.
- User-Friendly Indicators: LED indicators for power status, making troubleshooting easier and faster.
Altronix T2RM7F8SD Detailed Specifications
| Feature | Details |
| Power Supply Input Voltage | 120VAC, 60Hz, 4.5A max |
| Power Supply Output Voltage | 24VDC |
| Power Supply Current | 10A continuous |
| Battery Type | Sealed lead acid or gel type |
| Fire Alarm Disconnect | Supervised: Latching or non-latching |
| Low DC Power Shutdown | Shuts down output if battery voltage drops below 70-75% |
| Access Controller Output Voltage | 12 or 24VDC individually selectable |
| Voltage Regulator Input Voltage | 24VDC from eFlow104NB |
| Voltage Regulator Output Voltage | 12VDC, Current: 6A continuous |
| Operating Temperature | 0° C to 49° C (32° F to 120° F) |
| Storage Temperature | -20° C to 70° C (-4° F to 158° F) |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr | 123 BTU/Hr |
SKU  | T2RM7F8SD |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Input Voltage | 120VAC |
| Number of Outputs | 8 |
| Output Protection | PTC |
| Power Options | 10 amp @ 24VDC |
| Certifications | CE |
