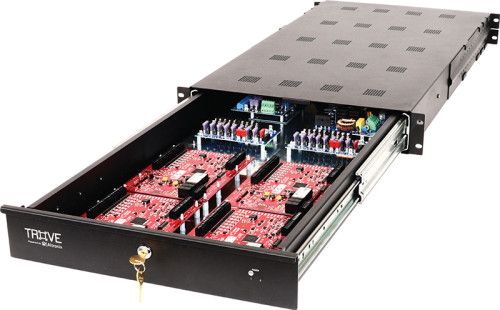

Altronix T2RM78SDQ 8-Door Altronix/Mercury Access & Power Integration Kit
SKU
T2RM78SDQ
Model No
T2RM78SDQ
$2,032.00
Product Highlights
- Voltage: 115VAC, 60Hz, 4.2A max
- AC Failure: Form ″C″ contacts
- Battery: Discharged or not connected
- Voltage: 24VDC from AL1024ULXB2
- Voltage: 12VDC and/or 24VDC
Speak to an expert
Altronix T2RM78SDQ is an advanced 8-Door Access & Power Integration Kit designed to streamline your access control systems. This robust kit includes a Trove2M2R enclosure/backplane, a powerful 24VDC @ 10A power supply, a dual input networked access control module with eight PTC protected outputs, a voltage regulator, and a power distribution module, all in one easy-to-install package. Its compatibility with various Mercury boards allows for customized functions, reducing installation time and labor costs while ensuring reliable monitoring and control of up to eight doors.
Altronix T2RM78SDQ Access Control Features
- Reliable Power Supply: 24VDC @ 10A ensures sufficient power for multiple devices, enhancing performance and reliability.
- Multiple Output Options: Eight PTC protected output access control modules provide flexibility in device management.
- Versatile Compatibility: Works seamlessly with an array of Mercury partners, allowing integration into existing security systems.
- Efficient Design: The Trove enclosure simplifies installation and wiring, significantly reducing setup time and costs.
- Battery Backup: Instantaneous failover support ensures continuous operation during power outages, safeguarding your security systems.
Detailed Specifications for Altronix T2RM78SDQ
| Feature | Details |
| Power Supply | AL1024ULXB2, 24VDC @ 10A |
| Main Input Voltage | 115VAC, 60Hz |
| Battery Type | Sealed lead acid or gel type |
| Voltage Regulator | VR6, 12VDC output, 6A continuous |
| PDS8CB Module Inputs | 12VDC from VR6 & 24VDC from power supply |
| Output Ratings | PTCs rated 2.5A, eight outputs selectable for various tasks |
| Environmental Operating Temp | 0° C to 49° C (32° F to 120° F) |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr | Approx. 123 BTU/Hr |
| Programmable Outputs | Eight outputs, supports fail-safe, fail-secure modes |
| Monitoring Features | High/low voltage and current monitoring, programmable alerts |
SKU  | T2RM78SDQ |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Input Voltage | 115VAC |
| Number of Outputs | 8 |
| Output Protection | PTC |
| Power Options | 10 amp @ 24VDC |
| Certifications | CE |
