Altronix T2PHK33F16 16-Door Access and Power Integration Kit - Trove2CV2 with Two (2) eFlow6NB, Two (2) ACM8. Trove2 Series

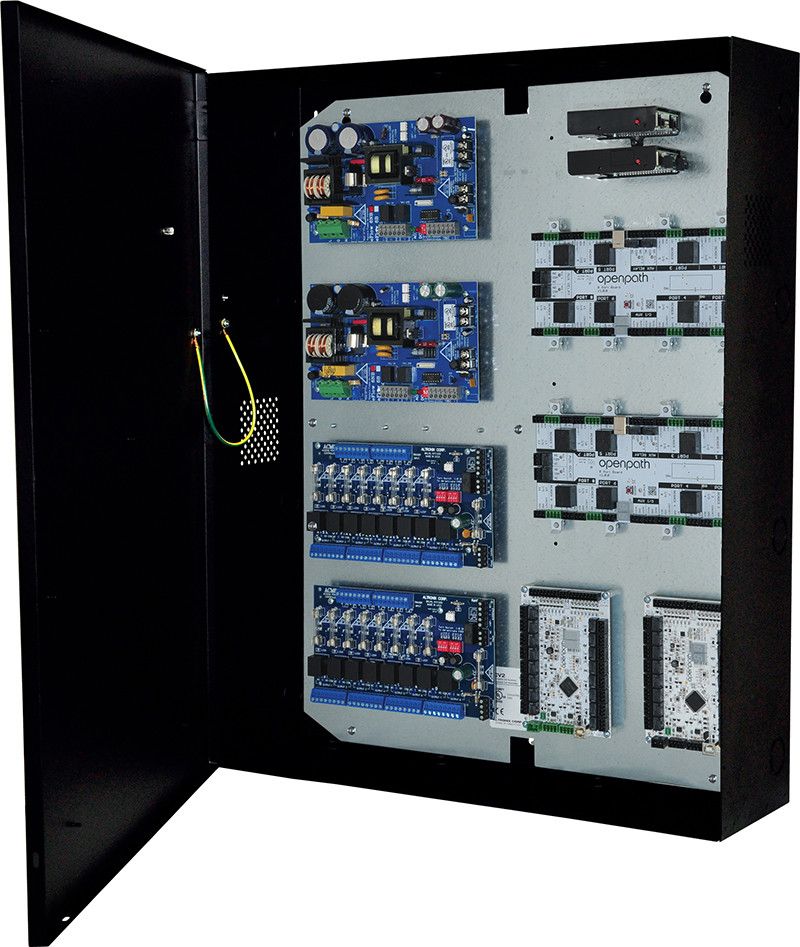

Altronix T2PHK33F16 kit includes a Trove2 enclosure, TCV2 Openpath/Altronix backplane with two 12 or 24VDC @ 6A power supply/chargers, and two eight fuse protected output access control modules. This comprehensive kit allows for the integration of up to sixteen doors, providing simplified board layout, enhanced wire management, and significant reductions in installation time and labor costs.

Altronix T2PHK33F16 Access and Power Integration Features

• Power Supply: 12 or 24VDC power supply/chargers ensure flexible voltage options for various applications.
• Module Accommodation: Supports up to two Openpath OP-ACC, OP16EM, and two OP-EX-4E or OP-X-8E modules, allowing for extensive expansion potential.
• Knockout Configuration: Features a convenient knockout design that facilitates easy installs with one single knockout (2” Conduit) and sixteen double knockouts (1” and 3/4” Conduit).
• Backplane Design: 16 AWG galvanized steel backplane enhances board layout and promotes efficient wire management, improving overall project organization.
• Supervision Features: Includes supervision for AC fail, low battery, battery presence, and low power shutdown, ensuring reliable system monitoring.
• Agency Listings: All components are UL Listed sub-assemblies satisfying rigorous safety and quality standards (UL294, cUL, CE European Conformity).
• Battery Capacity: Enclosure accommodates up to four 12VDC/12AH batteries, providing ample power reserve for extended operation.
