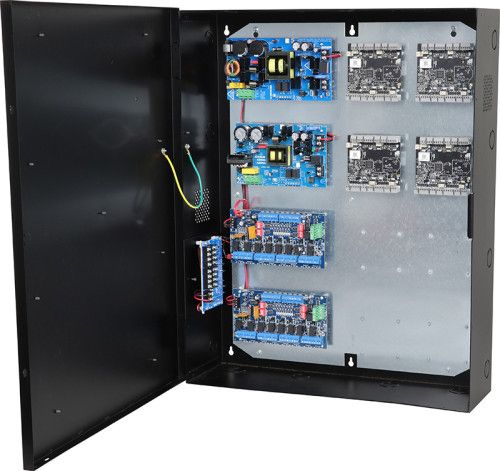

Altronix T2PDK75F16SD 16-Door Altronix/PDK Red™ Access and Power Integration Kit
SKU
T2PDK75F16SD
Model No
T2PDK75F16SD
$1,533.00
Product Highlights
- Voltage: 120VAC, 60Hz, 4.5A
- Voltage: 12VDC @ 10A
- Fuse: Rating 15A/32V
- Failover: Upon AC loss, instantaneous
- Battery: Discharged or not connected
Speak to an expert
The Altronix T2PDK75F16SD 16-Door Access and Power Integration Kit is a comprehensive solution designed for efficient access control management. This kit features a Trove2 enclosure and a PDK Red™ backplane, enabling seamless integration of power and control for up to 16 doors. It simplifies installation with its advanced wiring management and reduced labor costs, while delivering reliable performance through robust power supplies, backup systems, and supervised features for added security.
Altronix T2PDK75F16SD Access Kit Features
- Powerful Integration: Accommodates up to 16 doors with PDK Red™ modules in a single enclosure, enhancing access control scalability.
- Two Power Supplies: Includes one 24VDC @ 10A and one 12VDC @ 10A supply, providing versatile power management for various devices.
- PTC Protection: Equipped with eight PTC protected dual input/output access control modules to protect against surges and overloads.
- Reliable Battery Backup: Instantaneous failover upon AC loss ensures uninterrupted operation during outages.
- Advanced Supervision: Monitors AC failure and battery status, preventing deep discharge with low voltage protection.
- Environmental Resilience: Operates efficiently in a wide temperature range and high humidity environments, ensuring reliability in diverse conditions.
Altronix T2PDK75F16SD Detailed Specifications
| Feature | Details |
| Input Voltage (Power Supply 1) | 120VAC, 60Hz, 4.5A |
| Main Fuse (Power Supply 1) | 6.5A / 250V |
| Output Voltage (Power Supply 1) | 24VDC @ 10A |
| Output Auxiliary (Power Supply 1) | 1A (unswitched) |
| Input Voltage (Power Supply 2) | 120VAC, 60Hz, 3.5A |
| Main Fuse (Power Supply 2) | 5A / 250V |
| Output Voltage (Power Supply 2) | 12VDC @ 10A |
| Output Auxiliary (Power Supply 2) | 1A (unswitched) |
| Battery Type | Sealed lead acid or gel type |
| Battery Fuse Rating | 15A/32V |
| Low DC Power Shutdown | Triggers to protect battery from deep discharge |
| Operating Temperature | 0° C to 49° C (32° F to 120° F) |
| Storage Temperature | -20° C to 70° C (-4° F to 158° F) |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr | 290 BTU/Hr |
SKU  | T2PDK75F16SD |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Version | Indoor Wallmount |
| Input Voltage | 120VAC |
| Number of Outputs | 8 |
| Output Protection | PTC |
| Power Options | 10 amp @ 24VDC |
| Certifications | CE |
