Altronix T2PDK75F16S 16-Door Altronix/PDK Red™ Access and Power Integration Kit
SKU
T2PDK75F16S
Model No
T2PDK75F16S
was $1,821.00 Special Price $1,727.00
Product Highlights
- Voltage: 120VAC, 60Hz, 4.5A
- Voltage: 12VDC @ 10A
- Fuse: Rating 15A/32V
- Failover: Upon AC loss, instantaneous
- Battery: Discharged or not connected
Speak to an expert

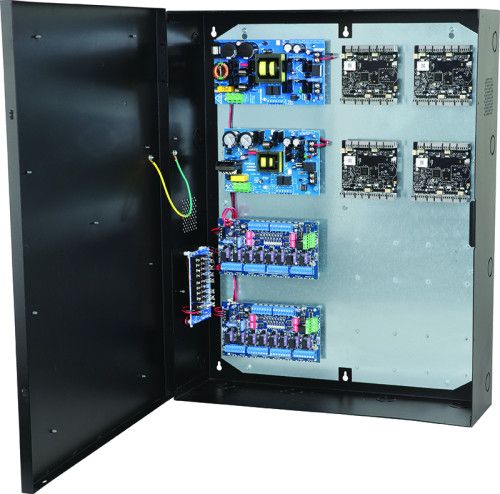

The Altronix T2PDK75F16S 16-Door Access and Power Integration Kit is designed for efficient control of access to multiple doors while simplifying installation and management. This comprehensive kit features a robust Trove2 enclosure and multiple integrated power supplies that provide reliable performance for up to sixteen doors. Its advanced power management system ensures stable operation, while its fused outputs and supervision features enhance security and prevent downtime.
Altronix T2PDK75F16S Access and Power Kit Features
- Power Supply Flexibility: The kit includes one 24VDC @ 10A and one 12VDC @ 10A power supply, providing versatile power options to support a variety of access control devices.
- Enhanced Installation Efficiency: The Trove2 enclosure simplifies board layout and wire management, leading to reduced installation time and lower labor costs.
- Support for Multiple Doors: Accommodates up to four PDK Red™ modules, allowing control of up to 16 doors within a single enclosure for centralized management.
- Built-In Supervision Features: Includes AC failure and battery supervision to ensure system reliability and prevent unexpected downtime.
- Robust Environmental Design: Operating temperature of 0° C to 49° C and 85% relative humidity tolerance for reliable performance in various conditions.
Altronix T2PDK75F16S Detailed Specifications
| Feature | Details |
| Power Supplies | One eFlow104NB (24VDC @ 10A), One eFlow102NB (12VDC @ 10A) |
| Input Voltage | 120VAC, 60Hz for both power supplies |
| Main Fuse | 6.5A for eFlow104NB, 5A for eFlow102NB |
| Battery Backup | Sealed lead acid or gel type, 15A rating, instantaneous failover |
| Fire Alarm Disconnect | Supervised latching or non-latching, with EOL 10K resistor |
| Output Voltage (eFlow104NB) | 24VDC @ 10A with 1A auxiliary |
| Output Voltage (eFlow102NB) | 12VDC @ 10A with 1A auxiliary |
| Surge Suppression | Built into VR6 voltage regulator |
| Temperature Range | Operating: 0° C to 49° C; Storage: -20° C to 70° C |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr | Approx. 290 BTU/Hr |
SKU  | T2PDK75F16S |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Version | Indoor Wallmount |
| Input Voltage | 120VAC |
| Output Protection | Fuse |
| Power Options | 10 amp @ 24VDC |
| Certifications | CE |
