Altronix T2M7XK1DV 8-Door Altronix/Mercury Access and Power Integration Wired Kit
SKU
T2M7XK1DV
Model No
T2M7XK1DV
$1,693.00
Product Highlights
- Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.7A
- Failover: Upon AC loss, instantaneous
- Battery: Form ″C″ contacts
- Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge
- a) Fail-Safe and/or Fail-Secure power outputs. Form ″C″ Relays rated 28VAC or VDC @ 2.5A
Speak to an expert

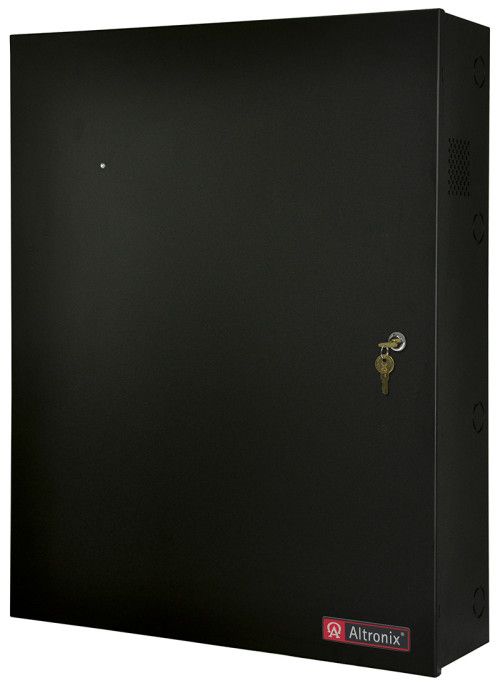

Altronix T2M7XK1DV is a robust 8-door access and power integration wired kit designed to provide reliable power and control for Mercury platform controllers and locking devices. This comprehensive solution includes factory-installed wire management and is pre-configured for straightforward installations, making it an ideal choice for demanding applications while ensuring compatibility with a wide array of partners' hardware.
Features
Altronix T2M7XK1DV Key Features
- eFlow104NBV Power Supply/Charger: Delivers dual voltage outputs (24VDC @ 10A) to support various devices, ensuring ample power supply for demanding setups.
- Battery Backup: Instantaneous AC loss failover allows for uninterrupted operation of critical systems, providing peace of mind during power outages.
- Fire Alarm Disconnect: Supervised options (latching/non-latching) enhance safety features, integrating seamlessly with fire alarm systems.
- Indicators LED: Visual indicators for AC, DC, and battery status provide at-a-glance verification of system health.
- PDS8CB Dual Input Power Distribution Module: Offers flexibility in power supply management with selectable outputs and serviceability options.
Altronix T2M7XK1DV Detailed Specifications
| Power Supply Type | eFlow104NBV |
| Input Voltage | 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.7A |
| Main Fuse | 6.5A / 250V |
| Outputs Voltage | 24VDC @ 10A |
| Battery Type | Sealed lead acid or gel type |
| Operating Temperature | 0° C to 49° C (32° F to 120° F) |
| Storage Temperature | -20° C to 70° C (-4° F to 158° F) |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr | 145 BTU/Hr |
SKU  | T2M7XK1DV |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Version | Indoor Wallmount |
| Input Voltage | 220VAC |
| Number of Outputs | 8 |
| Output Protection | PTC |
| Power Options | 10 amp @ 24VDC |
| Certifications | CE |
There are no related videos.
Write Your Own Review
Manuals & Specifications
T2M7XK1DV-Specsheet T2M7XK1DV-Installation-Instructions
