Altronix T2AXK7F8SD 8-Door Altronix/Axis Access and Power Integration Kit
SKU
T2AXK7F8SD
Model No
T2AXK7F8SD
$1,016.38
Product Highlights
- Voltage: 120VAC, 60Hz, 4.5A max
- Fuse Rating: 10A/32V
- AC Failure: Form ″C″ contacts
- Battery: Form ″C″ contacts
- Fail-Safe and/or Fail-Secure power outputs. Form ″C″ Relays rated 28VAC or VDC @ 2.5A
Speak to an expert

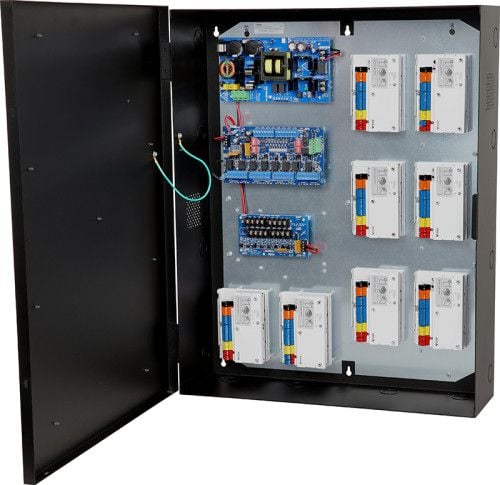

Introducing the Altronix T2AXK7F8SD 8-Door Access and Power Integration Kit, the ultimate solution for enhancing your security system. Designed for efficiency, it comprises a Trove2 enclosure that houses an Axis Communications/Altronix backplane, delivering a robust power supply and multiple access control modules. Experience seamless wire management, reduced installation time, and labor costs, all while securing up to eight doors from a single unit.
Features
Altronix T2AXK7F8SD Access Control Features
- Power Supply: eFlow104NB offers 24VDC @ 10A for reliable operation, ensuring all connected devices receive consistent power.
- Battery Backup: Features sealed lead acid compatibility, providing immediate power during AC loss, ensuring ongoing security.
- Smart Supervision: Monitors AC failure and battery conditions to prevent deep discharge, protecting your power supply integrity.
- Expandable Installation: Accommodates additional modules to support complex setups and multi-door configurations, streamlining security management.
- Environmental Resilience: Operates in a wide temperature range with 85% relative humidity tolerance, ensuring reliability in various conditions.
Detailed Specifications of Altronix T2AXK7F8SD
| Feature | Details |
|---|---|
| Model | Altronix T2AXK7F8SD |
| Trove2 Enclosure | Included for efficient organization and management |
| Power Supply | eFlow104NB - 24VDC @ 10A |
| Access Control Module | 8-PCT protected dual input/output |
| Voltage Regulator | 12VDC, 6A continuous |
| Power Distribution Module | 8-PCT outputs, selectable power input |
| Operating Temperature | 0° C to 49° C (32° F to 120° F) |
| Storage Temperature | -20° C to 70° C (-4° F to 158° F) |
| Relative Humidity | 85% ± 5% |
| BTU/Hr | Approx. 77 BTU/Hr |
SKU  | T2AXK7F8SD |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Version | Indoor Wallmount |
| Input Voltage | 120VAC |
| Number of Outputs | 8 |
| Output Protection | PTC |
| Power Options | 6 amp @ 12VDC, 6 amp @ 24VDC |
| Certifications | CE |
