Altronix T2AXK7F8S 8-Door Altronix/Axis Access and Power Integration Kit
SKU
T2AXK7F8S
Model No
T2AXK7F8S
$1,142.00
Product Highlights
- Voltage: 120VAC, 60Hz, 4.5A max
- Fuse Rating: 10A/32V
- AC Failure: Form ″C″ contacts
- Battery: Form ″C″ contacts
- Fail-Safe and/or Fail-Secure power outputs Form ″C″ Relays rated 28VAC or VDC @ 2.5A
Speak to an expert

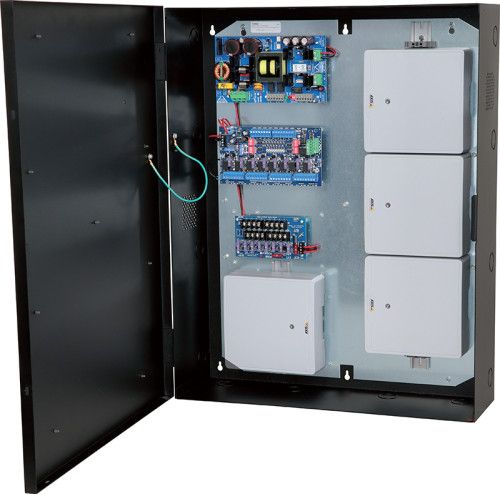

Altronix T2AXK7F8S 8-Door Access and Power Integration Kit is designed for efficient access control installations. This comprehensive kit includes the Trove2 enclosure alongside a power supply, access control module, and voltage regulator, all optimized for up to eight doors. With features that simplify installation, enhance wire management, and improve system performance, this kit is ideal for both residential and commercial applications.
Altronix T2AXK7F8S Access Control Features
- Versatile Power Supply: eFlow104NB ensures reliable power delivery with 24VDC at 10A, facilitating consistent operation of powered devices.
- Comprehensive Backup: Features battery backup for uninterrupted operation during power loss, ensuring safety and security at all times.
- Smart Supervision: AC failure and battery monitoring with Form “C” contacts help in proactive system management.
- User-Friendly Indicators: LED indicators provide clear visual feedback on system status, enhancing operability and ease of troubleshooting.
- Flexible Module Accommodation: Supports the integration of multiple access control modules, enabling customized security solutions for various installations.
Altronix T2AXK7F8S Detailed Specifications
| Power Supply Type | eFlow104NB |
| Input Voltage | 120VAC, 60Hz |
| Output Voltage | 24VDC |
| Output Current | 10A continuous |
| Battery Backup Type | Sealed lead acid or gel type |
| Operating Temperature | 0° C to 49° C (32° F to 120° F) |
| Storage Temperature | -20° C to 70° C (-4° F to 158° F) |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr | 77 BTU/Hr |
SKU  | T2AXK7F8S |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Version | Indoor Wallmount |
| Input Voltage | 120VAC |
| Number of Outputs | 8 |
| Output Protection | Fuse |
| Power Options | 10 amp @ 24VDC |
| Certifications | CE |
