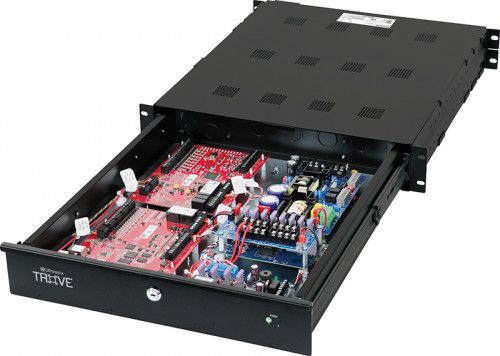

Altronix T1RM3CK1V 4-Door Altronix/Mercury Access and Power Integration
SKU
T1RM3CK1V
Model No
T1RM3CK1V
$1,280.00
Product Highlights
- Power status LED on front panel
- Simplified board layout and wire management
- 6 IEC320 3-wire power cord
- 2U drawer on extendable rails
- Black powder coated steel enclosure
Speak to an expert
Altronix T1RM3CK1V is a robust 4-door access and power integration kit that combines essential power supplies and sub-assemblies into a pre-configured system designed for ease of installation and reliability. Fully equipped for Mercury hardware, it ensures adequate power supply with dual voltage outputs, making it ideal for controlling access devices in high-demand applications. The innovative design of Trove Plus enhances field installations while delivering reliable control and power.
Altronix T1RM3CK1V Key Features
- Power Supply: eFlow6NBV ensures a stable 24VDC output with a maximum current of 6A, providing reliable power for demanding access control applications.
- Battery Backup: Integrated charging for sealed lead acid or gel batteries offers instantaneous failover upon AC loss, maintaining system operation even during outages.
- Comprehensive Supervision: AC failure and low battery shutdown monitoring prevents equipment failure and deep discharge of batteries, ensuring continuous operation.
- Power Distribution: PDS8 module supports both 12VDC and 24VDC outputs with individually selectable settings for each output, providing flexibility for various setups.
- Temperature Resilience: Operates effectively in a wide temperature range from 0° C to 49° C, making it suitable for various environments.
- Installation Simplified: Trove Plus design reduces installation complexity, making setup quicker and more efficient for technicians.
Altronix T1RM3CK1V Detailed Specifications
| Feature | Details |
|---|---|
| Power Supply/Charger | eFlow6NBV with 220VAC input, 24VDC output. |
| Input Voltage | 220VAC (working range 198VAC - 256VAC), 50/60Hz |
| Output Voltage | 24VDC, 6A continuous max. |
| Auxiliary Output | 1A auxiliary (unswitched). |
| Battery Type | Sealed lead acid or gel type, instantaneous failover on AC loss. |
| Supervision | AC failure and battery supervision via Form “C” contacts. |
| Output LED Indicators | Eight individual output LEDs indicating status for DC output. |
| Temperature Range | Operating: 0° C to 49° C, Storage: -20° C to 70° C. |
| Relative Humidity | 85% +/- 5% RH. |
| BTU/Hr | Approx. 87 BTU/Hr. |
SKU  | T1RM3CK1V |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Input Voltage | 220VAC |
| Number of Outputs | 4 |
| Output Protection | Fuse |
| Fire Alarm Interface | No |
| Battery Charging | Yes |
| Power Options | 6 amp @ 24VDC |
| Certifications | CE |
