Altronix T1DK3FA4D 4-Door Altronix/DIN Rail Access and Power Integration Kit
SKU
T1DK3FA4D
Model No
T1DK3FA4D
$580.42
Product Highlights
- Voltage: 12VDC or 24VDC selectable.
- Current: 6A continuous max.
- Auxiliary: Power-limited @ 1A (unswitched).
- Voltage: 120VAC, 60Hz, 3.5A max.
- Input Fuse: 5A/250V
Speak to an expert

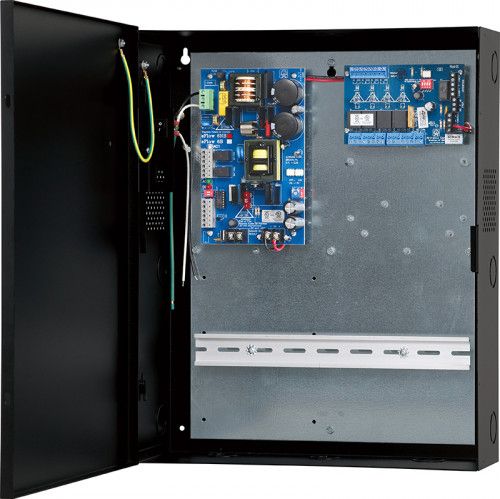

The Altronix T1DK3FA4D 4-Door Access and Power Integration Kit is designed for security systems, providing a reliable and efficient solution for powering and controlling access for up to four doors. It features a Trove1 enclosure along with a 12V or 24V power supply, a PTC access power controller, and room for additional DIN Rail mountable products. This kit simplifies installations, reduces labor costs, and enhances the management of power supplies for access control systems.
Altronix T1DK3FA4D Kit Features
- Complete Integration: The kit supports up to four doors, allowing for effective management of multiple access points within a single enclosure.
- Power Supply Versatility: Selectable output voltage of 12VDC or 24VDC with a 6A maximum continuous current ensures compatibility with various devices.
- Instant Failover: The integrated battery charging system provides instantaneous backup power upon AC loss, maintaining system functionality.
- Comprehensive Supervision: Features such as AC failure contacts and low DC power shutdown protect your system from potential damage and ensure reliability.
- Temperature Resilience: Operating temperature range of 0° C to 49° C ensures functionality across diverse environments.
Altronix T1DK3FA4D Detailed Specifications
| Feature | Details |
|---|---|
| Input Voltage | 120VAC, 60Hz, 3.5A max. |
| Input Fuse | 5A/250V |
| Output Voltage | 12VDC or 24VDC selectable |
| Output Current | 6A continuous max. |
| Auxiliary Power | Power-limited @ 1A (unswitched) |
| Battery Capacity | 7AH/12VDC (2 within enclosure); 40AH/65AH (requires separate enclosure) |
| Indicators | LED indicators for input and output power |
| Operating Temperature | 0° C to 49° C (32° F to 120° F) |
| Storage Temperature | -20° C to 70° C (-4° F to 158° F) |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr. Consumption | 12VDC: 40 BTU/Hr.; 24VDC: 77 BTU/Hr. |
SKU  | T1DK3FA4D |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Version | Indoor Wallmount |
| Input Voltage | 120VAC |
| Number of Outputs | 4 |
| Output Protection | PTC |
| Fire Alarm Interface | Yes |
| Battery Charging | Yes |
| Power Options | 6 amp @ 12VDC, 6 amp @ 24VDC |
| Certifications | CE |
