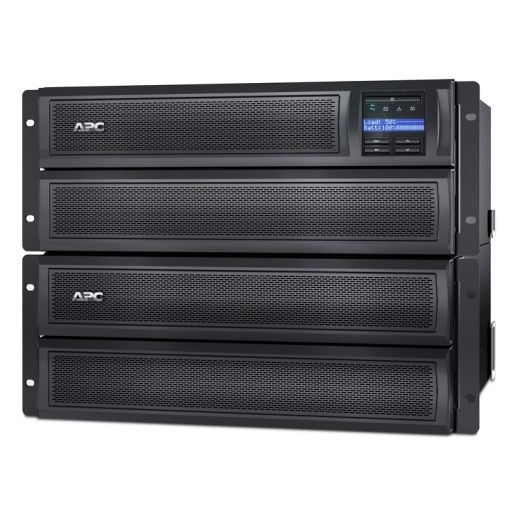

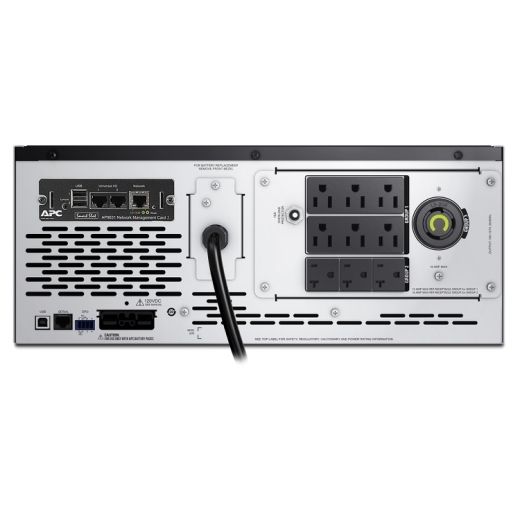

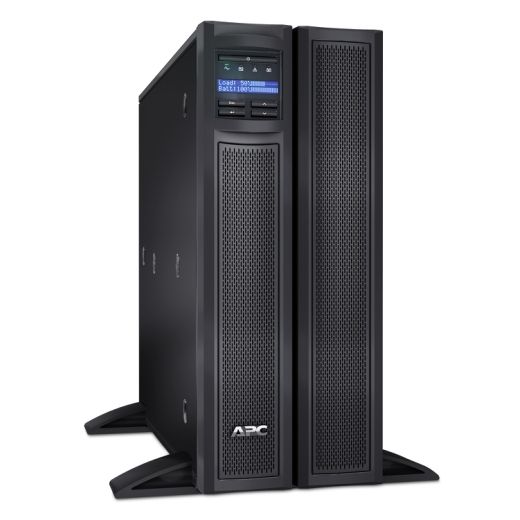

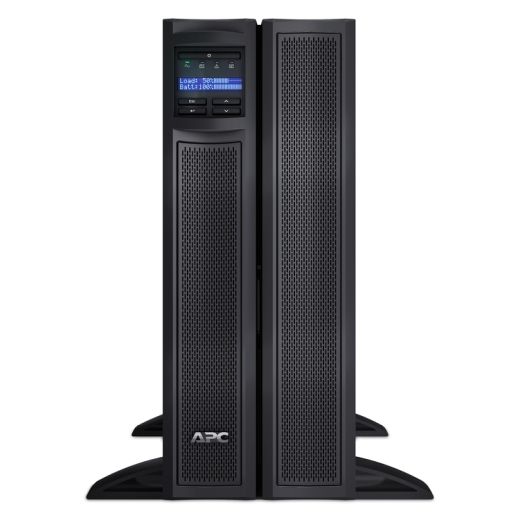

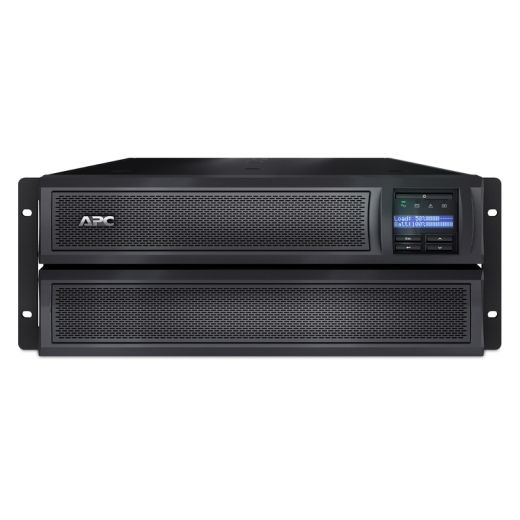

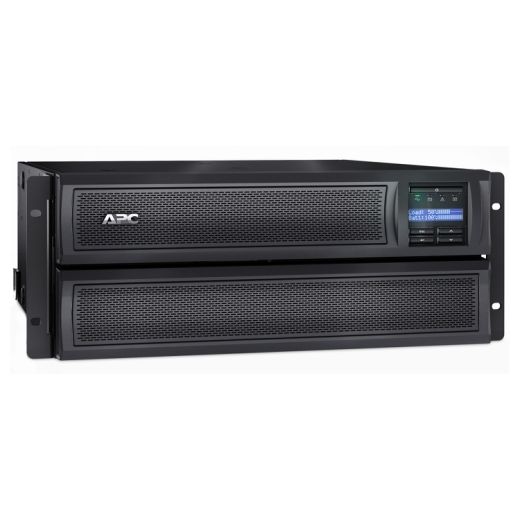

APC SMX2000LVNC Smart-UPS X 2000VA Rack/Tower LCD 100-127V with Network Card
SKU
SMX2000LVNC
Model No
SMX2000LVNC
$3,002.57
Product Highlights
- Provides actual kilowatt hours of usage for energy conscious users
- Reduces or eliminates bulky transformers resulting in lighter units for ease of handling
- Reduces utility costs, generates less heat
- Allows additional run time to be quickly added as needed
- Provides management of the UPS via a serial port

Speak to an expert
The SMX2000LVNC from APC is a Smart-UPS X 2000VA Rack/Tower LCD 100-127V with Network Card. Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Features
APC SMX2000LVNC + Key Features
- Auto recognition of external batteries: UPS recognizes when external battery packs are attached and automatically adjusts runtime, ensuring optimal performance based on power requirements.
- Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power, providing peace of mind during outages.
- Energy meter: Provides actual kilowatt hours of usage for energy-conscious users, helping monitor and reduce energy costs.
- Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High frequency design: Reduces or eliminates bulky transformers resulting in lighter units for ease of handling and installation.
- High online efficiency: Reduces utility costs and generates less heat, promoting energy savings.
- Intuitive LCD interface: Provides clear and accurate information in multiple languages with easy navigation for local configuration.
- Load shedding: Turns off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime.
- Multiple switched outlet groups: Controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off, and non-critical load shedding.
- Outlet group control: Allows turning on/off, rebooting, or shutting down select outlet groups, saving technician visits to remote locations.
- Predictive replace battery date: Dynamically provides recommended battery replacement month and year, aiding long-term maintenance planning.
- Rack/Tower convertible: Protects initial investment in the UPS when migrating from a tower to a rack-mount environment.
- Scalable runtime: Allows quick addition of runtime as needed, enhancing flexibility for power demands.
- Sequenced network shutdown and reboot: Customize network shutdown and reboot sequence of connected servers and UPSs for organized management.
- Serial connectivity: Provides management of the UPS via a serial port, facilitating integration with existing systems.
APC SMX2000LVNC + Detailed Specifications
| Feature | Details |
|---|---|
| Model | SMX2000LVNC |
| Type | Smart-UPS X |
| Capacity | 2000VA |
| Input Voltage | 100-127V |
| Dimensions | 3.5" x 17.5" x 25.5" (H x W x D) |
| Weight | 55 lbs |
| Network Card | Yes |
| Battery Replacement Target | Predictive replacement month/year |
| Output Connection | Multiple switched outlet groups |
