Altronix SMP7WP Outdoor DC Power Supply/Charger
SKU
SMP7WP
Model No
SMP7WP
$319.95
Product Highlights
- Voltage: 115VAC, 60Hz, 1.9A
- Voltage: 12VDC or 24VDC selectable
- Current: 6A continuous supply current
- Filtered and regulated
- Input: Input voltage is present
Speak to an expert

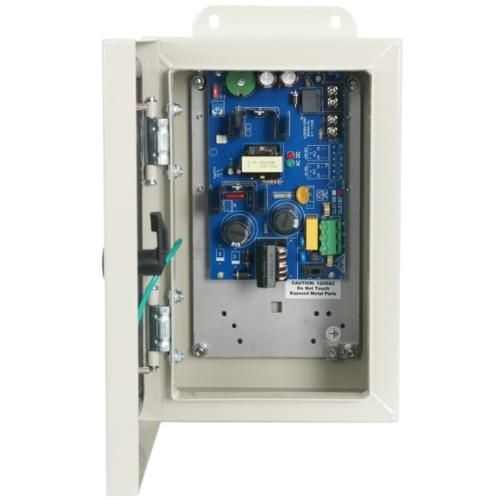

Altronix SMP7WP DC Outdoor Power Supply/Charger provides versatile power options with 12VDC or 24VDC output, designed for easy mounting wherever power is needed. Its durable 16 GA steel construction with a heat-fused polyester powder finish ensures NEMA 4/4X, IP66-11 ratings for exceptional outdoor performance. This model features user-friendly turn lock and integral flanges for straightforward installation on walls or poles.
Altronix SMP7WP Outdoor DC Power Supply Features
- Input: 115VAC, 60Hz, 1.9A for sufficient energy input.
- Outputs: 12VDC or 24VDC selectable for versatile application options.
- Current: 6A continuous supply current ensures stable power delivery.
- Protection: Short circuit and thermal overload protection safeguards connected devices.
- Regulation: Filtered and regulated output for clean power supply.
- Battery Backup: Compatible with sealed lead acid or gel type batteries for uninterrupted power during AC loss.
- Indicators: LED indicators for easy monitoring of input and output status.
- Temperature Range: Operating range of -40ºC to 60ºC (-40ºF to 140ºF) for extreme weather conditions.
- Humidity: Relative humidity tolerance of 85% +/- 5% to withstand various environmental conditions.
Altronix SMP7WP Detailed Specifications
| Feature | Detail |
| Input Voltage | 115VAC, 60Hz, 1.9A |
| Output Voltage | 12VDC or 24VDC (selectable) |
| Current Output | 6A continuous supply current |
| Protection | Short circuit and thermal overload protection |
| Output Regulation | Filtered and regulated |
| Battery Compatibility | Sealed lead acid or gel type (not included) |
| Indicators | LED for input voltage and DC output status |
| Operating Temperature | -40ºC to 60ºC |
| Storage Temperature | -40ºC to 70ºC |
| Humidity | 85% +/- 5% |
| BTU/Hr (12VDC) | 37 BTU/Hr |
| BTU/Hr (24VDC) | 74 BTU/Hr |
SKU  | SMP7WP |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Power Options | 6 amp @ 12VDC, 6 amp @ 24VDC |
| Input Voltage | 115VAC |
| Certification | CE |
