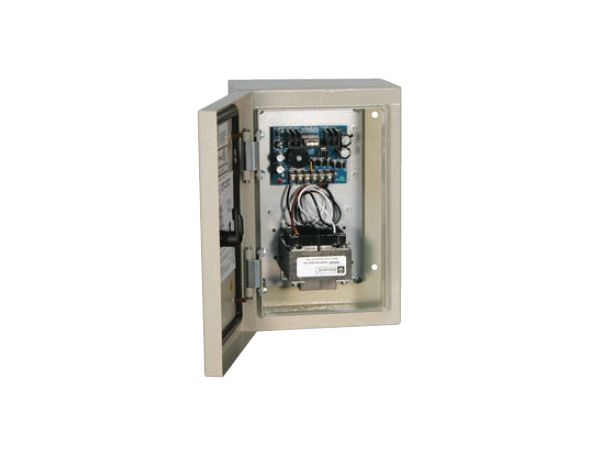

Altronix SMP5WP Outdoor DC Power Supply/Charger

Altronix SMP5WP Outdoor DC Power Supply/Charger offers a robust and reliable power solution, providing selectable 12VDC or 24VDC outputs with outstanding performance. Built with a durable 16 GA steel enclosure, it's weatherproof and designed for outdoor use, featuring NEMA 4/4X and IP66-11 ratings for protection against harsh elements. Easy to install with turn lock design and integral flanges, this unit ensures a dependable power supply wherever you need it.

Altronix SMP5WP Power Features

• Voltage Input: Accepts 115VAC, 60Hz, 0.95A or 230VAC, 50Hz, 0.6A for versatile power options.
• Selectable Outputs: Choose between 12VDC or 24VDC to meet your setup requirements.
• High Current Supply: Delivers up to 4A continuous at 12VDC or 3.5A at 24VDC for reliable performance.
• Protection Features: Equipped with short circuit and thermal overload protection to enhance safety and longevity.
• Filtered and Regulated: Ensures stable output, minimizing fluctuations for sensitive electronics.
• Battery Backup Compatibility: Supports sealed lead acid or gel type batteries for uninterrupted power supply (enclosure required).
• Instant Failover: Automatically switches to battery backup upon AC loss for continuous operation.
• LED Indicators: Provides clear visual status of input voltage and DC output, simplifying monitoring.
• Wide Operating Range: Functional in extreme temperatures, from -40ºC to 55ºC for 12VDC and up to 45ºC for 24VDC.
• High Humidity Tolerance: Operates effectively in environments with 85% relative humidity.

Altronix SMP5WP Detailed Specifications
