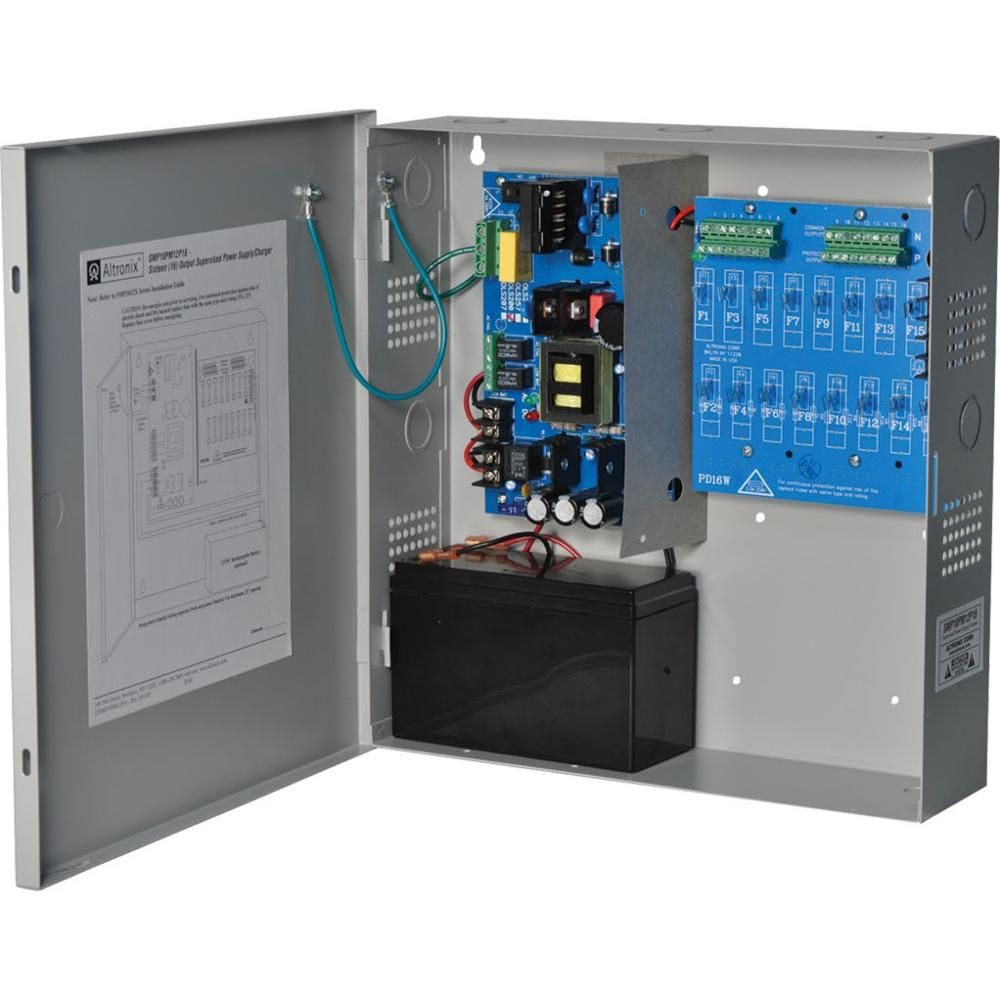

Altronix SMP10PM12P16CB2 Power Supply Charger, 16 PTC Outputs
SKU
SMP10PM12P16CB2
Model No
SMP10PM12P16CB2
$294.00
Product Highlights
- Multi-output power supply/charger that converts a 220VAC
- 50/60Hz input into sixteen (16) 12VDC outputs
Speak to an expert
Altronix SMP10PM12P16CB2 Power Supply Charger Features
The SMP10PM12P16CB220 is a multi-output power supply/charger that converts a 220VAC, 50/60Hz input into sixteen (16) 12VDC outputs.
- High Output Capacity: With 16 outputs, this power supply can efficiently power multiple devices simultaneously, making it ideal for larger systems.
- PTC Output Protection: Each output is protected by PTC fuses, reducing the risk of damage from overloads and ensuring reliable operation.
- Built-In Charger: The integrated charger keeps batteries charged, ensuring a continuous power supply during outages.
- Compact Design: Its space-saving design allows for easy installation in various environments without taking up excessive space.
- Thermal Protection: Features thermal fuses for added safety, preventing overheating and potential hazards.
Detailed Specifications for Altronix SMP10PM12P16CB2
| Input Voltage | 220VAC, 50/60Hz |
| Output Voltage | 16 x 12VDC |
| Output Current | 2.0A per output, 10A total |
| Protection Type | PTC fuses per output |
| Dimensions | 11.2" x 8.5" x 3.1" |
| Weight | 6.5 lbs |
SKU  | SMP10PM12P16CB2 |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Power Options | 10 amp @ 24VDC |
| Input Voltage | 220VAC |
| Number of Outputs | 16 |
| Output Protection | PTC |
