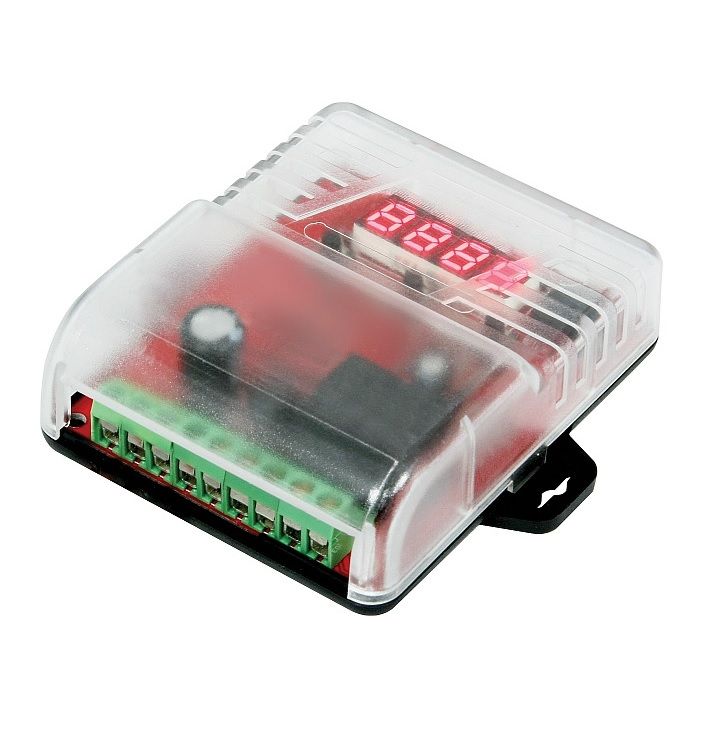

Seco-Larm SA-025MQ Multi-Function Timer / Counter
SKU
SA-025MQ
Model No
SA-025MQ
$32.54
Product Highlights
- 12~24VDC (auto-sensing) operation
- Low current draw
- Timer can be set from 1sec~11h 59min
- Relay can be programmed to trigger at the start or end of the timing cycle, or to toggle
- Relay can be programmed to pulse (0.5sec on / 0.5sec off) or steady on (1sec~11h 59min)
Speak to an expert
The ENFORCER SA-025MQ Multi-Function Programmable Timer is designed for versatility and efficiency, featuring 7 programmable modes that cater to various common applications. With its user-friendly pushbutton programming and clear LED display, it's easy to set up and utilize for effective time management and control.
Seco-Larm SA-025MQ Key Features
- 12~24VDC: Automatic voltage sensing ensures compatibility with a range of power sources, simplifying installation.
- Low Current Draw: Efficient design minimizes power consumption, prolonging device lifespan and reducing energy costs.
- 7 Programmable Modes: Options such as auto door closure and guard timer provide flexibility for diverse applications.
- Notification Triggers: Alerts through red LED and/or buzzer enhance operational awareness and security.
- Extensive Timer Range: Adjustable from 1 second to 11 hours and 59 minutes, accommodating various timing needs.
- Flexible Trigger Input: Can be activated by multiple input types, offering adaptable installation options.
- Customizable Relay Functionality: Features programmable relay triggers for precise control, enhancing operation reliability.
- Reset Input: A manual reset capability provides user control over the timing cycle.
Seco-Larm SA-025MQ Detailed Specifications
| Feature | Details |
|---|---|
| Power Supply | 12~24VDC (auto-sensing) |
| Current Draw | Low |
| Programmable Modes | 7 (includes auto door closure, guard timer, false trigger avoidance, etc.) |
| Relay Output | Form C relay output (10A@24VDC) |
| Timing Range | 1 sec to 11h 59min |
| Input Trigger Types | N.O. pos. (+), N.C. neg. (–), or by powering up |
| Relay Trigger Options | Start, end of cycle, or toggle |
| Relay Pulse Option | 0.5 sec on/off or steady (1 sec to 11h 59min) |
| Manual Reset | Included reset input (N.O.–) |
SKU  | SA-025MQ |
|---|---|
| Manufacturer | Seco-Larm |
| Operating Voltage | 12 to 24 VDC |
| Calendar | No |
| Function | Multi-Function Timer |
