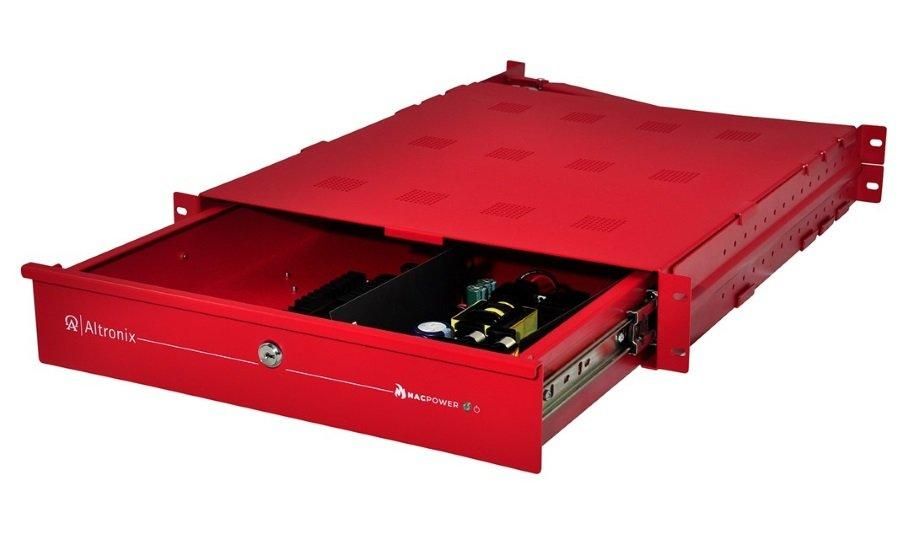

Altronix R1042ULADA Rack Mountable NAC Power Extender, 4 Class A or 4 Class B Outputs

Altronix R1042ULADA is a space-saving 10A remote power supply/battery charger specifically designed for fire signaling applications such as Notification Appliance Circuits (NAC) expansion, including strobes and horns, while meeting ADA requirements. Built for rack mount configuration, this unit is ideal for locations with limited wall space. It is compatible with any 12 or 24 volt Fire Alarm Control Panel (FACP) and provides electronically regulated and filtered 24 volt power to Class B or Class A NAC loop circuits, ensuring reliable performance when powering NAC devices.

Altronix R1042ULADA Features

• Input Voltage: 120VAC, 60Hz, 5A for efficient power supply from standard outlets.
• Input Ratings: 8-30VDC, ensuring compatibility with various system configurations.
• Output Voltage: 24VDC power-limited outputs provide the necessary power for NAC devices.
• Max Current: 10A total alarm current, allowing flexibility in distributing power across outputs.
• Auxiliary Outputs: Two 1A auxiliary outputs to power additional system components.
• Protection Features: Thermal and short circuit protection with auto reset ensures system reliability.
• Programmable Outputs: Four Class B or A configuration allows for versatile installation based on system needs.
• Battery Backup: Built-in charger automatically switches to standby batteries during AC failures for uninterrupted power.
• Supervision Contacts: Form “C” contacts for AC failure and battery monitoring enhance system oversight.
• LED Indicators: Clear visual indicators for AC power, DC output, and logic board status facilitate easy monitoring.
• Sync Mode: 2-wire horn/strobe synchronization simplifies operation of audible and visual alerts.
• Temperature Tolerance: Operating range from 0° C to 49° C supports various environmental conditions.

Altronix R1042ULADA Detailed Specifications
