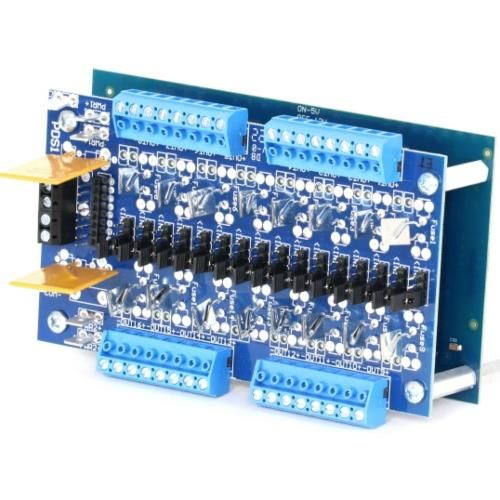

Altronix PDS16CB Dual Input Power Distribution Module, 16 PTC Outputs

Altronix PDS16CB Dual Input Power Distribution Module is engineered to efficiently manage power distribution from two low voltage AC or DC sources, facilitating seamless operation across various systems. With sixteen PTC-protected outputs, users can easily set outputs to follow either input source or turn them off for maintenance, ensuring flexibility and reliability. Ideal for larger setups, the daisy-chaining capability allows expansion while maintaining optimal performance.

Altronix PDS16CB Input Features

• Voltage Range: Accommodates 5VDC to 24VDC (up to 10A each) or 16VAC to 28VAC (60Hz, 10A each, 16A total input) to ensure wide compatibility with power sources.

Altronix PDS16CB PTC Ratings

• Main PTC Rating: 9A for reliable output protection, preventing overloads.

Altronix PDS16CB Output Specifications

• Outputs: Sixteen PTC-protected outputs rated at 2A each, allowing for a total output of 16A max, ensuring safety and compliance with power limitations.
• Individual Power Supply Ratings: Respect individual ratings to prevent overcurrent conditions.
• Selectability: Each of the sixteen outputs can follow either Input 1 or Input 2 for tailored power management.
• Maintenance: Outputs can be set to OFF for servicing without affecting other operations.
• PTC Ratings: Each output PTC is rated at 2A for enhanced protection.
• Total Output Current: Determined by power supply(ies) with a max of 10A per input to ensure safety.

Altronix PDS16CB LED Indicators

• DC Output LEDs: Individual voltage indicators show 12VDC (Green) or 24VDC (Red and Green) for easy monitoring.

Altronix PDS16CB Additional Features

• Daisy-Chaining: Designed to allow multiple units to be daisy-chained for larger system capabilities, providing flexibility.

Altronix PDS16CB Temperature Specifications

• Operating Temperature: 0° C to 49° C (32° F to 120° F) ensures reliable operation in varied environments.
• Storage Temperature: -20° C to 70° C (-4° F to 158° F) for safe storage conditions.
• Humidity: Operating relative humidity of 85% +/- 5% to protect against environmental conditions.
